In modern electrical power systems, high voltage switchgear plays a critical role in protecting, controlling, and isolating electrical equipment. In the hierarchy of a power grid, switchgear acts as the nervous system’s primary reflex—sensing abnormalities and responding within milliseconds to isolate faults. Without reliable switchgear, high-voltage transmission and distribution networks would be vulnerable to catastrophic faults, widespread downtime, and lethal safety hazards for utility personnel.
At AnRui, we view high voltage switchgear as a masterwork of precision engineering. These systems must manage incredible electrical stresses—interrupting fault currents that can exceed 40,000 Amperes while maintaining a perfectly insulated environment. This guide explores the definition, granular technical components, diverse types, and the strategic maintenance required to ensure grid reliability and operator safety.
While terminology varies by region, high voltage switchgear generally refers to equipment managing power systems operating above 36 kV, extending into the hundreds of kilovolts for transmission grids. According to IEC 62271-200, the primary mission of switchgear is to facilitate the safe making, carrying, and breaking of electrical currents under both normal and abnormal conditions.
High voltage switchgear is designed to fulfill four primary grid functions:
Fault Protection: Sensing over-current or short-circuit events and triggering circuit breakers to isolate the fault area before it damages upstream transformers or generators.
Isolation for Maintenance: Providing a visible and mechanical gap in the circuit, ensuring that maintenance crews can work safely on de-energized sections of the network.
Operational Switching: Allowing for load-shedding, grid reconfiguration, and the integration of renewable energy sources during fluctuating demand periods.
Personnel Safety: Containing arc-flash energy within grounded metal enclosures and providing foolproof mechanical interlocking systems.

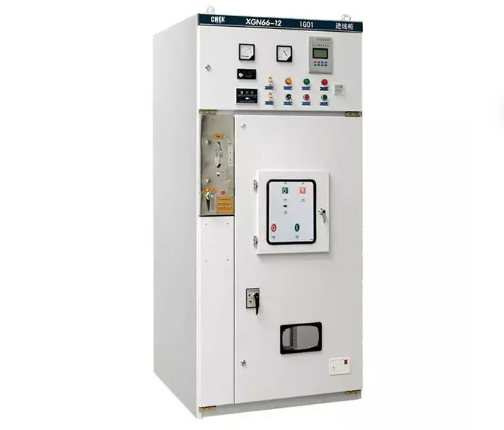

High voltage switchgear is not a single device, but a complex assembly of mechanical and electromagnetic components housed within a robust metal enclosure.
The circuit breaker is the most critical component. It must be able to pull apart contacts while carrying a massive arc of plasma. AnRui utilizes advanced arc-quenching technologies:
SF6 Breakers: Utilize Sulfur Hexafluoride gas, an electronegative gas that "captures" free electrons to extinguish the arc with extraordinary speed.
Vacuum Breakers: Utilize a vacuum interrupter where the lack of medium prevents the arc from sustaining itself, ideal for medium-to-high voltage switching.
Disconnectors (Isolators) provide a mechanical gap for safety but are not designed to break a load. Earthing switches are used to ground the circuit, discharging any residual capacitive energy before technicians touch the internal busbars. At AnRui, these are interlocked with the breaker to prevent "opening under load" accidents.
Current Transformers (CT) and Potential Transformers (PT) scale down the massive voltages and currents to manageable levels (e.g., 5A or 110V). These feed data into protective relays. AnRui specifies CTs with high accuracy classes (0.2s) for revenue metering and high-burden classes for fault protection coordination.
Engineers must select switchgear based on environmental constraints, available footprint, and the criticality of the load.
In a GIS system, all active components (breakers, busbars, CTs) are enclosed in a sealed metal tank pressurized with SF6 gas.
Advantages: It is exceptionally compact—requiring only 10% of the space of a traditional outdoor substation. Because it is sealed, it is immune to environmental pollution, salt-spray corrosion, and wildlife interference. AnRui GIS is the preferred solution for urban metropolitan substations and offshore wind platforms.
AIS uses atmospheric air as the primary insulation medium. These are typically outdoor open-yard arrangements.
Advantages: AIS is cost-effective and allows for easy visual inspection of all components. However, it requires a much larger safety clearance distance (BIL - Basic Insulation Level) to prevent phase-to-ground flashovers through the air.
Hybrid solutions combine GIS technology for the circuit breakers and busbars while using AIS for the connections. This provides a balance between footprint optimization and maintenance accessibility, often used for retrofitting existing substations.
The Fourth Industrial Revolution has transformed switchgear from passive mechanical devices into "Smart Switchgear" integrated with the Internet of Things (IoT).
Modern protection follows the IEC 61850 standard. Instead of thousands of copper wires, AnRui systems use fiber-optic cables to send GOOSE (Generic Object Oriented Substation Event) messages between units. This reduces electromagnetic interference and allows for ultra-high-speed coordination between substations.
When selecting AnRui high voltage switchgear, engineers must evaluate several technical parameters:
| Technical Parameter | Utility Requirement | Impact on Reliability |
|---|---|---|
| Rated Voltage | Grid voltage (e.g., 110kV, 220kV) | Determines BIL and safety distances. |
| Short-Circuit Rating | e.g., 40kA for 3 seconds | Ensures the unit doesn't explode during a fault. |
| IP / IK Rating | Protection against dust/water/impact | Crucial for outdoor or industrial environments. |
| Operating Mode | Manual, Motorized, or Remote | Impacts operational speed and safety. |
Switchgear is unique because it may sit idle for months but must work perfectly in a split second. Maintenance is the key to this readiness.
High resistance in a busbar joint or breaker contact leads to localized heating and potential fire. AnRui recommends annual micro-ohm testing to ensure the silver-plated contacts are making a perfect, low-resistance connection.
A high-voltage circuit breaker must close its three phases within milliseconds of each other. Any "pole discrepancy" can lead to dangerous phase imbalances and grid instability. Timing tests verify the mechanical springs and motors are within factory tolerances.
High voltage switchgear is the ultimate guardian of electrical infrastructure, providing the critical link between energy security and operational safety. Whether managing a utility transmission grid, a heavy industrial complex, or a multi-megawatt renewable project, the quality of the switchgear defines the resilience of the entire system. By investing in AnRui's advanced, customizable solutions, you are securing an uninterrupted power flow and protecting your most valuable assets from the volatile forces of electrical faults.
From ultra-compact GIS modules to robust AIS solutions, AnRui provides the engineering expertise and high-performance equipment required for modern grid stability. Contact our high-voltage team today for a free project consultation.
