How to Troubleshoot Common Issues with Dry Type Transformers

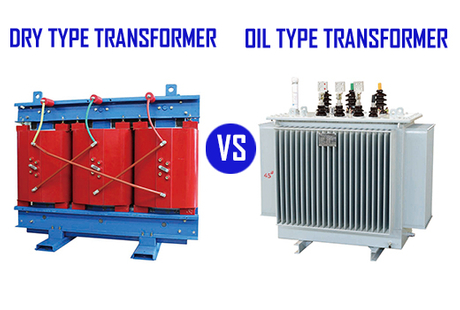

Dry type transformers are the preferred choice for indoor industrial facilities, high-rise commercial buildings, and sensitive environments like hospitals and data centers. Unlike their oil-filled counterparts, dry type units utilize air as the primary cooling medium and solid insulation materials—such as cast resin or vacuum pressure impregnation (VPI) varnish—to isolate electrical components. This elimination of flammable oil provides a significant advantage in fire safety and environmental protection.

However, the lack of liquid coolant means that dry type transformers are more sensitive to ambient air quality, dust accumulation, and localized thermal stress. Identifying problems early is critical to preventing downtime. At AnRui, we emphasize that proactive troubleshooting and a disciplined maintenance schedule are the only ways to ensure your power system operates at peak performance for its 30+ year design life.

Identifying Common Dry Type Transformer Issues

Most transformer failures are not instantaneous; they are preceded by subtle warning signs. By training technical personnel to recognize these symptoms, facility managers can intervene before a minor fault escalates into a catastrophic failure. AnRui engineers categorize primary issues into four major areas.

Overheating and Thermal Management Symptoms

Heat is the primary enemy of dry type insulation. If the transformer room temperature feels unusually high or the unit's enclosure is too hot to touch, the unit is likely operating outside its thermal parameters. Look for the following signs:

• Discoloration or "charring" on the winding surfaces.

• A distinct smell of ozone or burning resin.

• Nuisance tripping of temperature sensors or cooling fan relays.

• Visible cracks in cast resin coils, which can be caused by excessive thermal expansion.

Insulation Degradation and Dielectric Breakdown

Insulation in a dry type transformer serves as the barrier against high-voltage flashovers. Over time, environmental factors like moisture, dust, and chemical vapors can degrade this barrier. Symptoms of failing insulation include audible "crackling" or "popping" sounds (indicating partial discharge), visible tracking marks (small carbonized paths) on the surface of the resin, or a significant drop in insulation resistance during Megger testing.

Abnormal Acoustic Signatures and Vibrations

A healthy transformer produces a low-frequency, steady hum caused by magnetostriction (the expansion and contraction of the steel core). Any deviation from this hum—such as loud rattling, metallic clanking, or high-pitched whining—indicates a mechanical or electrical issue. Rattling often points to loose clamping bolts or mounting hardware, while aggressive "buzzing" may suggest inter-turn short circuits within the windings.

Mechanical Connection Faults

Because dry type transformers operate at high temperatures, electrical connections undergo constant thermal cycling. This can lead to the loosening of terminals. Signs of connection failure include localized "hot spots" visible under infrared thermography, melted cable lugs, or uneven voltage readings across phases.

Installation and Operational Best Practices

Reliability begins long before the transformer is energized. Proper installation sets the foundation for thermal stability. AnRui provides the following rigorous guidelines for deployment.

Pre-Energization Checklists

Before commissioning an AnRui unit, technicians must perform the following:

• Verify all core and coil shipping braces have been removed to allow for natural vibration.

• Inspect all windings for any transit-related cracks or debris.

• Test the operation of all cooling fans and the accuracy of the temperature controller (PT100 sensors).

• Measure the Insulation Resistance (IR) to ground to ensure no moisture ingress has occurred during storage.

Detailed Troubleshooting of Overheating and Insulation

When overheating is detected, it is rarely a single-factor problem. Use the following diagnostic table to isolate the cause.

The Role of Harmonics in Dry Type Heating

Modern industrial equipment—such as VFDs and large UPS systems—inject high-frequency harmonics into the transformer. Unlike oil-filled units that can dissipate this extra heat through a larger thermal mass, dry type transformers can experience rapid temperature spikes in the windings. If your facility runs heavy non-linear loads, an AnRui K-rated transformer is essential to handle these "eddy current losses" without degrading the resin.

Preventive Maintenance Schedule

Preventive maintenance is the most cost-effective way to avoid emergency repairs. AnRui recommends the following schedule based on environmental conditions (Clean vs. Dusty/Industrial).

Monthly Operational Checks

Observe the temperature display on the digital controller. Ensure the fans are not running continuously, which might indicate a climbing ambient temperature. Listen for changes in the acoustic profile during peak load periods.

Annual Shutdown Maintenance

Once a year, de-energize the unit and perform a "Deep Clean":

• Vacuum Cleaning: Use a high-power industrial vacuum to remove dust from the cooling ducts. Never use wet cloths or detergents on the resin.

• Torque Verification: Use a calibrated torque wrench to check all electrical connections. Expansion and contraction over 12 months often loosen even the most secure bolts.

• Thermal Scanning: If possible, perform infrared thermography right before the shutdown to identify any high-resistance points.

Conclusion

Dry type transformers are the silent, safe workhorses of modern power distribution. By maintaining clean cooling paths, ensuring proper airflow, and conducting regular electrical testing, you can protect your facility from the risks of thermal failure. AnRui is committed to engineering equipment that stands the test of time, but the ultimate longevity of your asset lies in the hands of diligent maintenance and rapid troubleshooting.
