In the evolving landscape of global power distribution, safety and environmental sustainability have become the primary drivers of infrastructure design. Dry type transformers have emerged as a critical solution for modern urban environments, high-rise buildings, and mission-critical facilities. Unlike traditional oil-immersed transformers, which utilize mineral oil for cooling and insulation, dry type transformers leverage atmospheric air and solid dielectric materials. This fundamental shift in cooling methodology eliminates fire risks, oil-leakage hazards, and the need for complex fire-suppression systems.
At AnRui, we view the dry type transformer as a masterwork of material science. By utilizing advanced epoxy resins and vacuum-pressure impregnation (VPI) techniques, we create units that are not only virtually fireproof but also resistant to extreme mechanical shocks and harsh atmospheric conditions. This comprehensive guide provides an engineering-level analysis of why we use dry type technology, its technical classifications, and its strategic advantages in the modern grid.

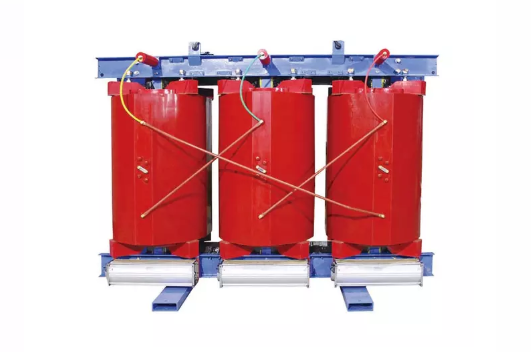

A dry type transformer is an electromagnetic device that operates with its magnetic core and windings exposed to air or encapsulated in solid insulation. Heat dissipation is achieved through natural air convection (AN) or forced air (AF). The absence of liquid insulation requires the use of high-performance solid materials capable of withstanding significant dielectric stress and thermal rise.
In dry type engineering, the "Thermal Class" defines the maximum allowable temperature at which the insulation system can operate over its design life. AnRui primarily utilizes Class F (155°C) and Class H (180°C) systems.
Class F (155°C): Standard for high-quality industrial applications, offering excellent thermal stability for 20+ years.
Class H (180°C): Provides an additional safety margin of 25°C, making it the preferred choice for units subjected to high harmonic distortion or extreme ambient temperatures.
The transition to dry type transformers is driven by four key pillars of modern infrastructure management: safety, environment, maintenance, and logistics.
The primary advantage is the "Self-Extinguishing" nature of the insulation. In the event of an internal electrical arc or an external fire, AnRui's epoxy resin will not fuel the flames and will not emit toxic gases. This allows these units to be installed in tunnels, subways, and hospitals where oil fires would be catastrophic.
Dry type transformers represent the "Green" alternative. They pose zero risk of groundwater contamination or soil pollution, as there is no oil to leak. This eliminates the need for expensive oil-containment pits and simplifies regulatory compliance with ISO 14001 standards.
Oil-immersed units require periodic oil sampling, dissolved gas analysis (DGA), and gasket replacements. AnRui dry type units require only basic periodic cleaning of the ventilation ducts to prevent dust-induced hotspots. This leads to a significantly lower Total Cost of Ownership (TCO) over a 25-year lifecycle.
To ensure global reliability, dry type transformers are categorized by international standards (IEC 60076-11) into Environmental, Climatic, and Fire Behavior classes.
| Classification | Standard Rating | AnRui Implementation |
|---|---|---|
| Climatic (C) | C2 (Resistant to thermal shock) | Operational down to -25°C without cracking. |
| Environmental (E) | E2 (Condensation/Pollution) | Safe for use in high-humidity/coastal zones. |
| Fire Behavior (F) | F1 (Self-extinguishing) | Materials minimize caloric release during fires. |
Due to their safety profile, dry type transformers have become indispensable in specific high-density sectors.
In high-rise residential and commercial towers, the transformer must be located as close to the load as possible (often on the 50th floor or in the basement). Dry type units are the only safe option for these locations, meeting strict municipal building and fire codes.
Data centers require high power density and absolute reliability. Dry type transformers can be integrated into "Package Substations" or "Power Skids" directly adjacent to server racks. AnRui's low-noise core designs ensure that these units do not introduce structural vibrations that could interfere with sensitive hardware.
On ships and oil rigs, space is at a premium and oil leaks are a major ecological threat. AnRui marine-grade dry type transformers are designed with specialized vibration damping and salt-spray resistant coatings to survive the constant movement and corrosive air of the open sea.
While oil-filled units still dominate the ultra-high voltage (UHV) transmission market, dry type units are winning the distribution and indoor market.
Thanks to the solid encapsulation of the windings, dry type transformers possess incredible mechanical strength. During a short-circuit event, the electromagnetic forces (Lorentz forces) can reach several tons. AnRui's cast resin coils are structurally rigid, preventing the "telescoping" or collapsing of windings that can occur in liquid units if the clamping becomes loose.
When specifying an AnRui dry type unit, several technical factors must be addressed:
Harmonic Load (K-Factor): Modern electronics create harmonics that cause extra heating. We offer K-rated designs with thicker conductors to handle this distortion.
Seismic Requirements: For zones with earthquake risk, we provide reinforced bases and specialized core-clamping structures.
Noise Mitigation: Using high-grade silicon steel and precision-lap joints, we reduce the "Magnetostriction" hum to meet strict indoor environmental standards.
Dry type transformers represent the pinnacle of safe, clean, and reliable power distribution. By eliminating the risks associated with flammable fluids and hazardous leaks, they provide the peace of mind required for modern urban and industrial infrastructure. Whether you are managing a high-performance data center or a bustling metropolitan grid, AnRui's dry type solutions are engineered to deliver silent, efficient power for the next quarter-century.
Choosing the right transformer is a strategic decision that impacts the long-term safety and cost-efficiency of your project. At AnRui, we are committed to providing the technical expertise and high-performance equipment necessary to power a more sustainable and secure future.
Ensure the safety and efficiency of your next project with AnRui's advanced dry type transformers. Our engineering team is ready to assist you with custom technical drawings and project-specific consultations.
