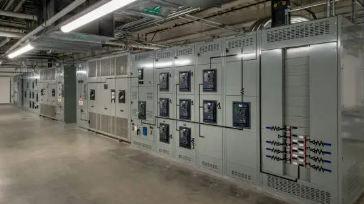

What Is a Box Substation and How Does It Work?

In the modern era of power distribution, the demand for efficiency, safety, and aesthetic integration has transformed the way electrical infrastructure is designed. The Box Substation—frequently referred to as a compact substation, prefabricated substation, or package substation—has emerged as the definitive engineering solution for medium-to-low voltage transformation. Unlike traditional open-yard substations that require massive land parcels and extensive on-site civil works, the box substation provides a "plug-and-play" alternative that is factory-assembled, tested, and ready for rapid deployment.

At AnRui, we recognize that the box substation is more than just a metal container; it is a highly engineered ecosystem. It must manage intense electromagnetic fields and high-voltage dielectric stress while providing adequate thermal cooling within a restricted physical volume. This guide provides an exhaustive engineering analysis of box substation architecture, its primary technical compartments, and the strategic advantages of choosing modular power solutions for industrial and urban networks.

Defining the Box Substation Architecture

A box substation is a fully enclosed, modular power distribution unit. By consolidating all necessary equipment into a factory-prefabricated housing, engineers can eliminate the complexities of on-site wiring and environmental exposure. The unit is typically divided into three independent, galvanically isolated compartments to ensure safety and prevent fault propagation.

The High Voltage (HV) Compartment

The HV side serves as the entry point for the utility grid, typically managing voltages from 6kV to 35kV.

• Switchgear Integration: This compartment usually houses a Ring Main Unit (RMU) or a load break switch (LBS) paired with high-voltage fuses.

• Protection Logic: Vacuum interrupters or SF6 gas-insulated breakers provide primary protection against short-circuits and lightning surges.

• AnRui Innovation: Our HV compartments utilize 5-prevention safety interlocks, ensuring that operators cannot access the live busbars while the circuit is energized.

The Transformer Compartment

This is the heart of the substation, responsible for the electromagnetic conversion of medium voltage to end-use low voltage (e.g., 400V/230V).

• Selection Choice: Depending on the environment, AnRui installs either an oil-immersed transformer (for maximum thermal efficiency) or a cast resin dry-type transformer (for fire-sensitive indoor or urban locations).

• Magnetic Performance: We utilize high-permeability CRGO steel cores to ensure that the "no-load" iron losses—which occur 24/7—are minimized, meeting global Tier 2 efficiency standards.

The Low Voltage (LV) Compartment

The LV side manages the distribution of power to the final consumers or industrial machinery.

• Modular Distribution: Houses the main LV breaker (typically an ACB or MCCB), along with individual branch circuit protection.

• Power Quality: Often integrated with capacitor banks for automatic power factor correction, reducing the reactive power penalty from the utility.

• Smart Metering: Equipped with digital multifunctional meters that support RS485 or Ethernet communication for remote SCADA integration.

European Style vs. American Style Designs

Box substations are generally categorized into two distinct design philosophies based on their internal arrangement and access methods.

Operational Mechanics: From Inflow to Outflow

The working principle follows a streamlined sequence designed for maximum dielectric safety. Electricity enters through the HV compartment via underground cables. The RMU facilitates switching and protection, directing the power to the transformer. After the electromagnetic step-down process, the low-voltage current travels through insulated busbars to the LV compartment. From there, it is monitored, measured, and distributed through a series of breakers to the end-use facility.

Strategic Benefits of Prefabricated Power

For project developers and utility engineers, AnRui box substations provide significant economic and operational advantages.

Space Efficiency and Aesthetic Integration

In crowded metropolitan areas, land is an expensive commodity. The compact design of a box substation allows it to be hidden in green belts, parking lots, or basements. AnRui enclosures can be finished with specialized GRC (Glass-Fiber Reinforced Cement) or architectural cladding to match the surrounding building aesthetics, making the power infrastructure virtually invisible.

Rapid "Plug-and-Play" Deployment

A traditional substation can take months of on-site coordination. An AnRui compact substation is fully assembled and factory-tested (FAT). Once it arrives on-site, only the high and low-voltage cable connections and the grounding grid need to be finalized. This reduces installation time by over 80%.

Total Cost of Ownership (TCO)

By eliminating the need for a dedicated substation building, firewalls, and complex civil engineering, the initial CAPEX is significantly lower. Furthermore, the sealed enclosure protects the components from dust, humidity, and wildlife, leading to reduced maintenance intervals and a longer service life (typically 25-30 years).

High-Performance Applications

Box substations have become the standard choice for several critical sectors:

• Renewable Energy: Essential for Solar PV and Wind farms. These "Inverter Substations" are often skid-mounted for easy relocation.

• Urban Distribution: Replacing old overhead poles in cities to improve safety and grid reliability.

• Temporary Power: Ideal for massive construction sites or oil/gas drilling operations where portable, robust power is required.

• Infrastructure: Powering airports, railway stations, and tunnels where safety and space are at a premium.

Digitalization: The Smart Box Substation

The future of box substations lies in the Internet of Things (IoT). AnRui’s smart substations are equipped with:

• Real-time Temperature Sensors: Monitoring the transformer hotspot to prevent insulation aging.

• Online DGA (for oil units): Detecting internal arcing before it leads to a trip.

• Remote Operation: Allowing grid operators to switch circuits via SCADA from a central control room.

• Security Alerts: Door sensors and vibration monitors to prevent unauthorized access in remote locations.

Conclusion

The box substation represents a smart, scalable, and resilient solution for the challenges of modern power distribution. By combining the precision of factory assembly with the flexibility of modular design, AnRui provides a foundation for grid stability that meets the demands of urbanization and renewable energy. Whether you are upgrading an existing industrial plant or designing a new "Smart City" network, a compact substation is the most reliable investment for long-term power safety and efficiency.

Choosing AnRui means choosing a partner with global export experience and a commitment to engineering excellence. Our solutions are certified to international standards (IEC, GB, CE) and are customized to meet the unique climatic and electrical requirements of your project.
