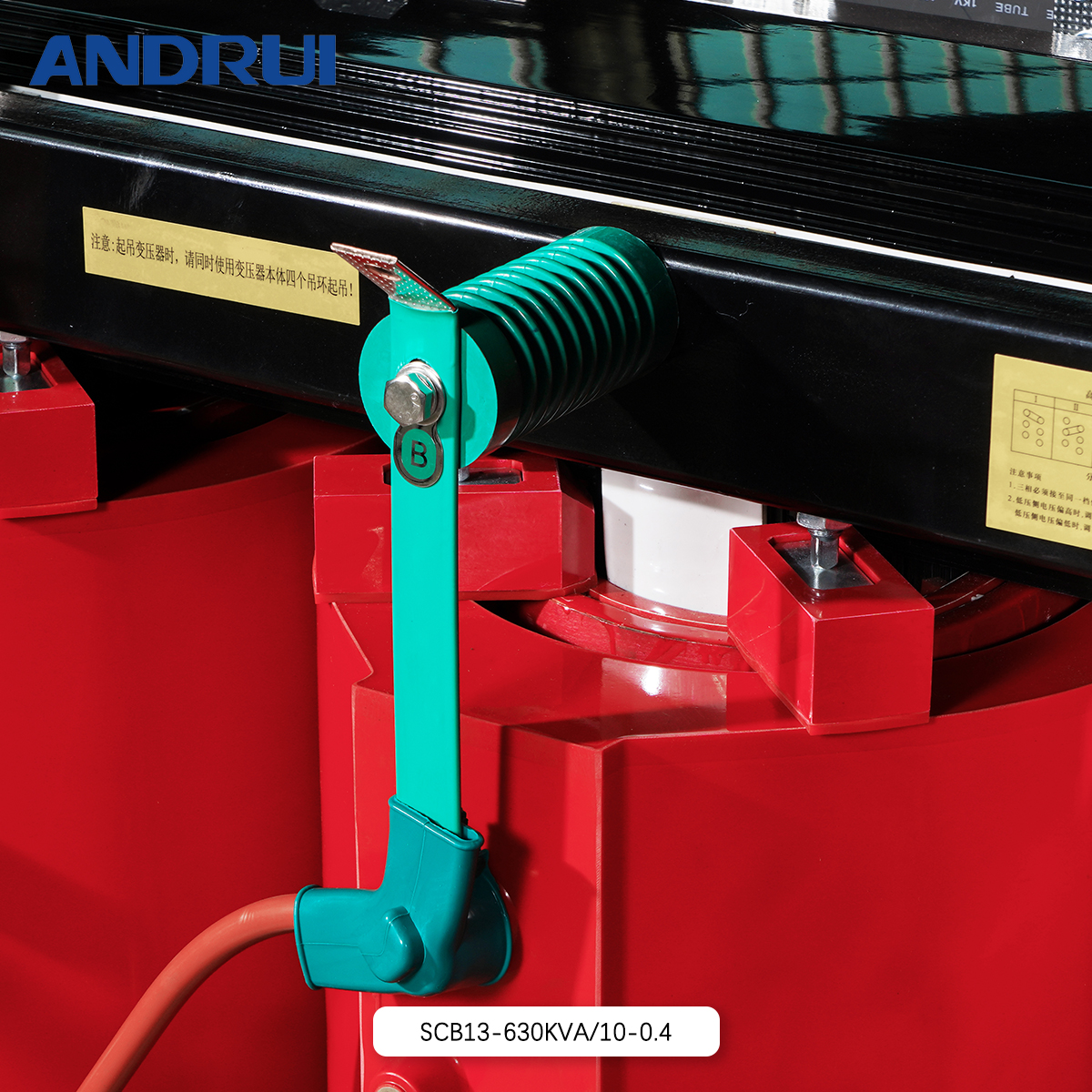

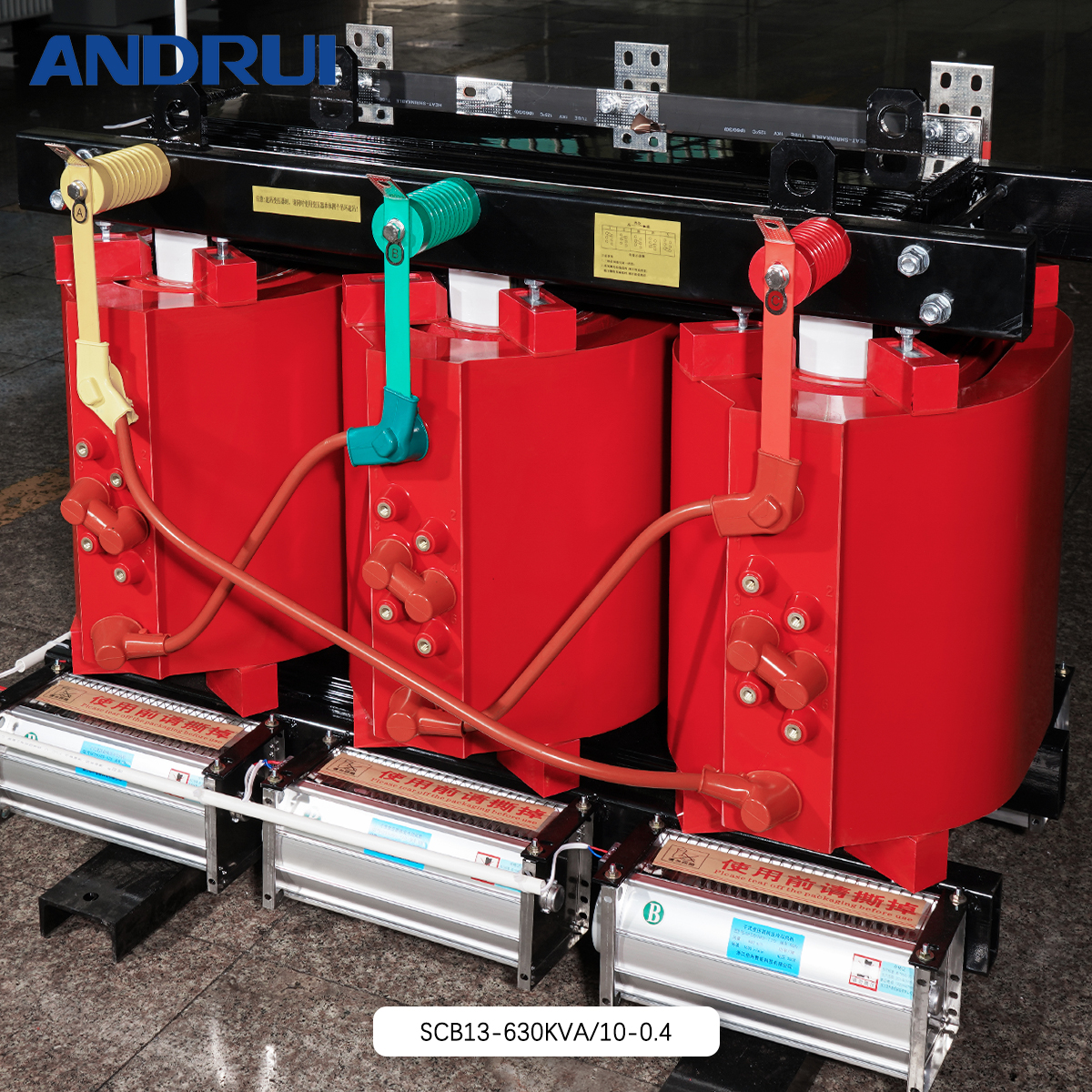

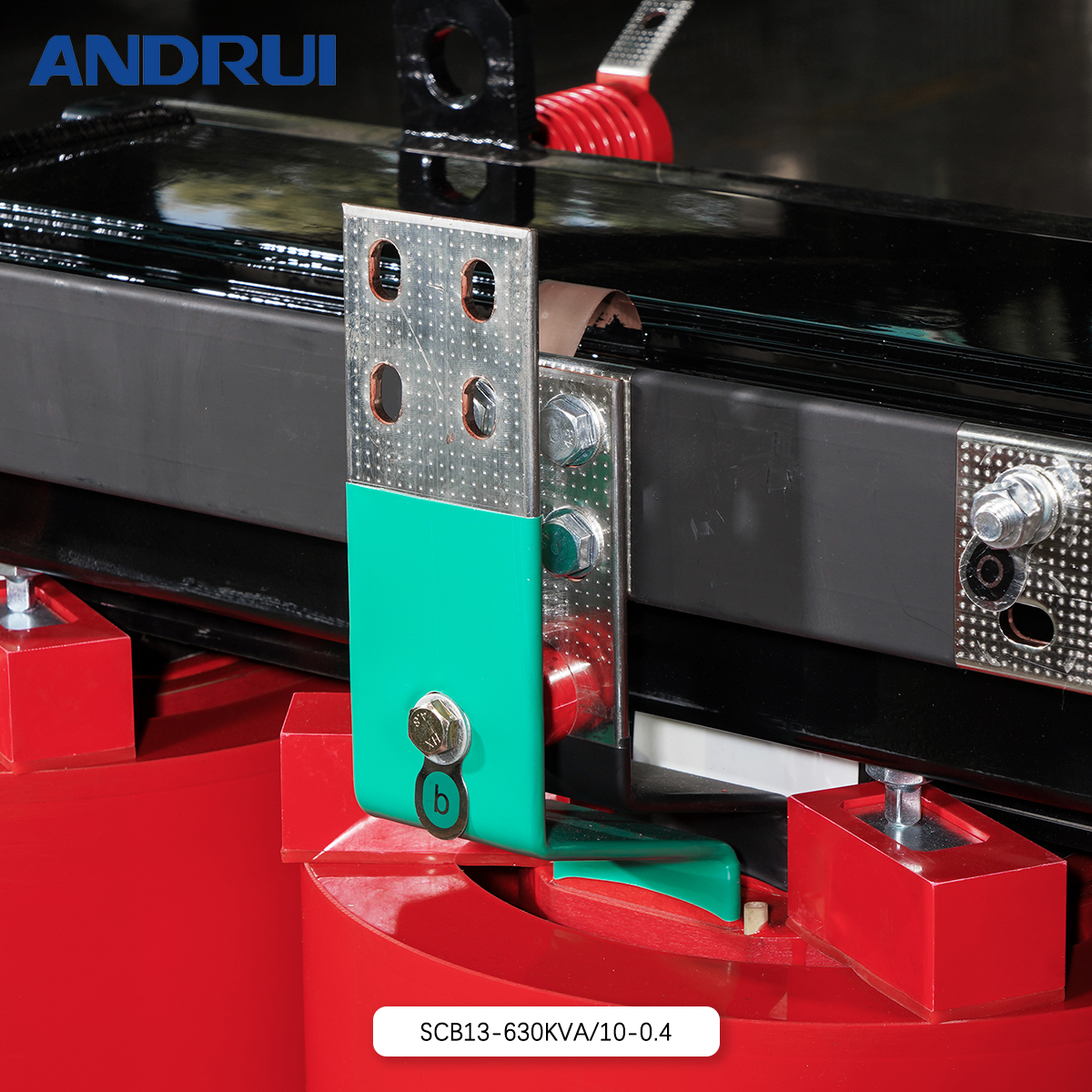

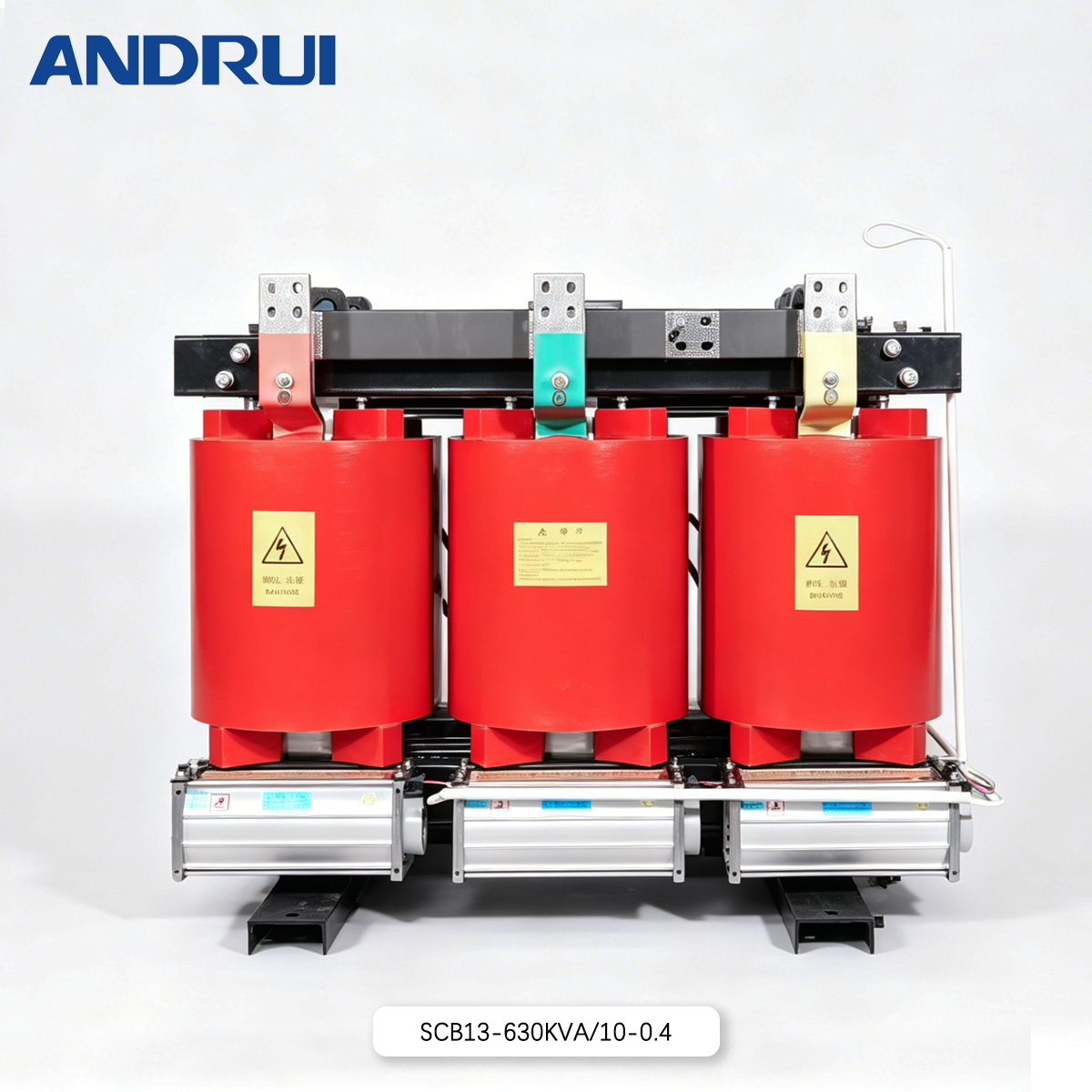

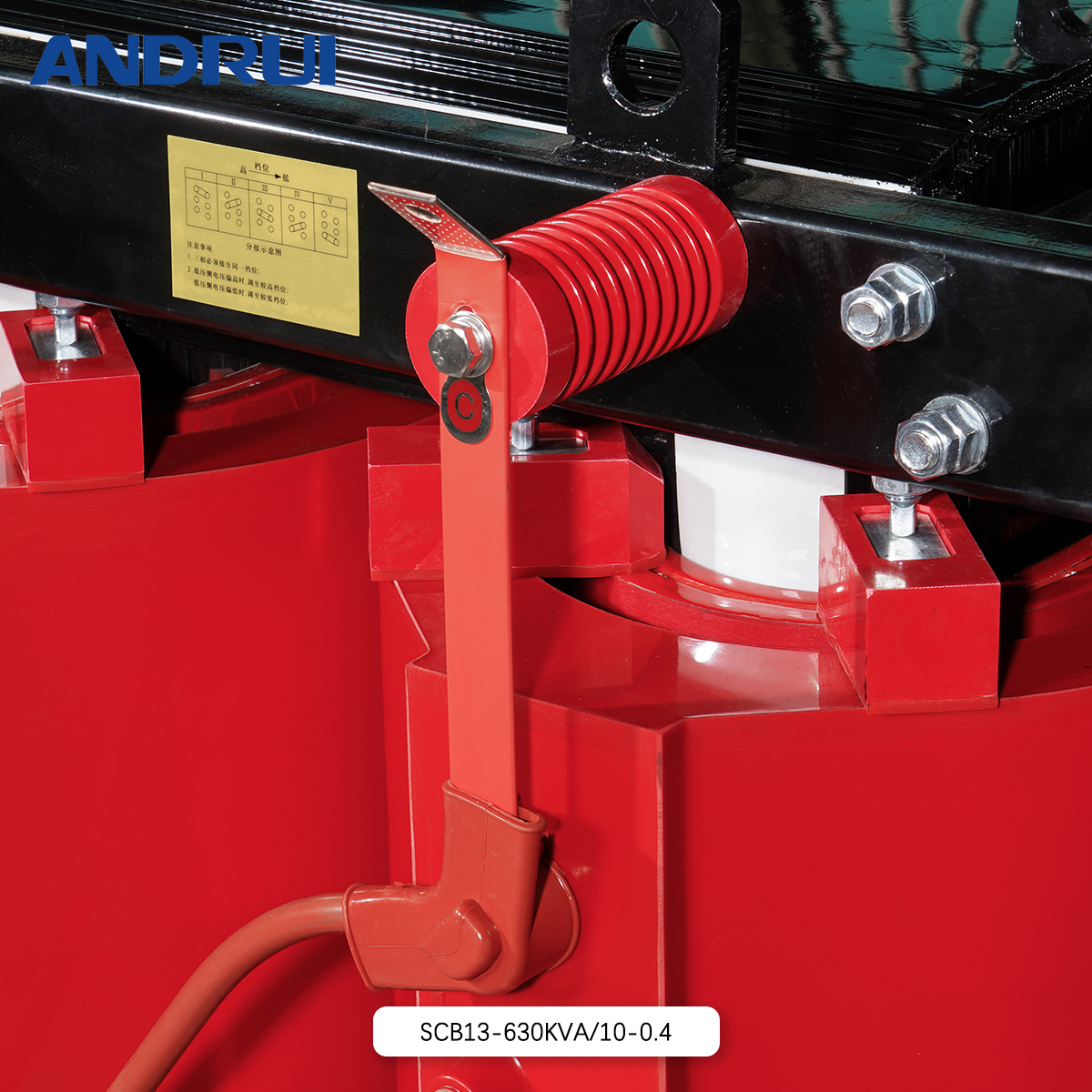

SCB13-630kVA 10/0.4kV Cast Resin Dry-Type Transformer

SCB13-630kVA 10/0.4kV cast resin dry-type transformer is designed for safe and efficient power distribution in medium-load applications. It features flame-retardant insulation, low noise operation, and excellent moisture resistance, making it ideal for indoor substations and commercial buildings.

Availability:



Inquire

Product Description

The main performance parameters of dry-type transformers with all-copper windingsSCB13-630KVA10-0.4

Serial Number 序号	ltem 项目	Unit 单位	Transformer Specifications 变压器规格
1	Model 型号		SCB13
2	Rated Capacity 额定容量	KVA	630
3	Rated Voltage 额定电压	KV	10/0.4
4	Split Range 分接范围		±2*2.5%
5	lmpedance Voltage 阻抗电压	%	6
6	Connection Group 联结组别		Dyn11
7	Phase/Frequency 相数/频率		3相 50Hz
8	lnsulation level (high Voltage/low voltage) 绝缘等级（高压/低压）		F
9	Lightning impulse Level (High Voltage) 雷电冲击水平（高压）	KV	75
10	Rated AC withstand voltage level(high voltage) 工频耐压水平（高压）	KV	35
	Rated AC withstand voltage level(low voltage) 工频耐压水平（低压）	KV	5
11	No-load loss 空载损耗	W	935
12	Load Loss(75°C) 负载损耗（75°C）	W	5365
13	Total Loss 总损耗	W	6300
14	No Load Current 空载电流	%	0.85
15	Voltage Regulation Method 调压方式		无励磁
16	Cooling Method(AN/AF) 冷却方式（AN/AF）		AN/AF
17	Overall dimensions (lengthwidthheight) 外型尺寸（长宽高）	mm	170013002200
18	Weight 重量	Kg	1900
