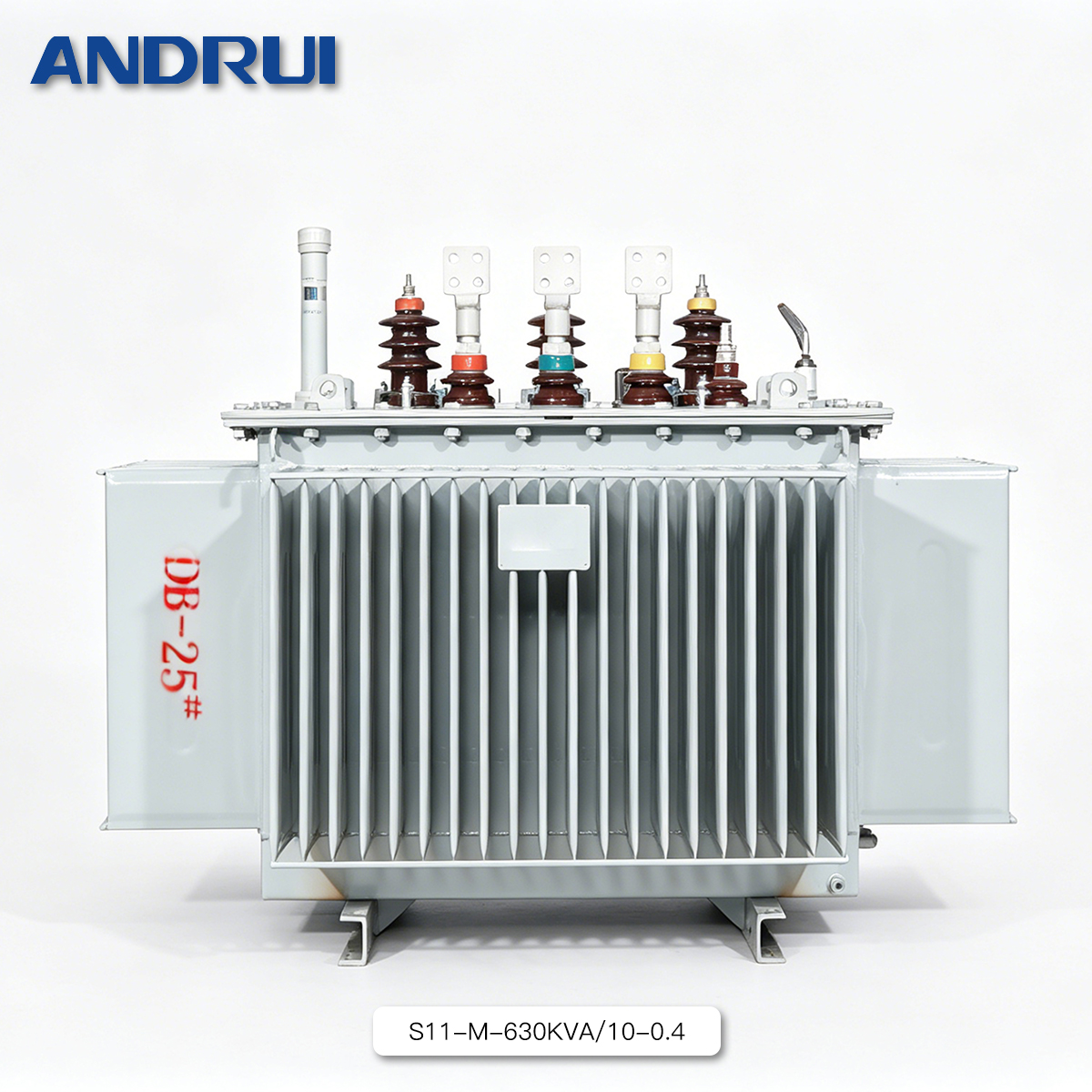

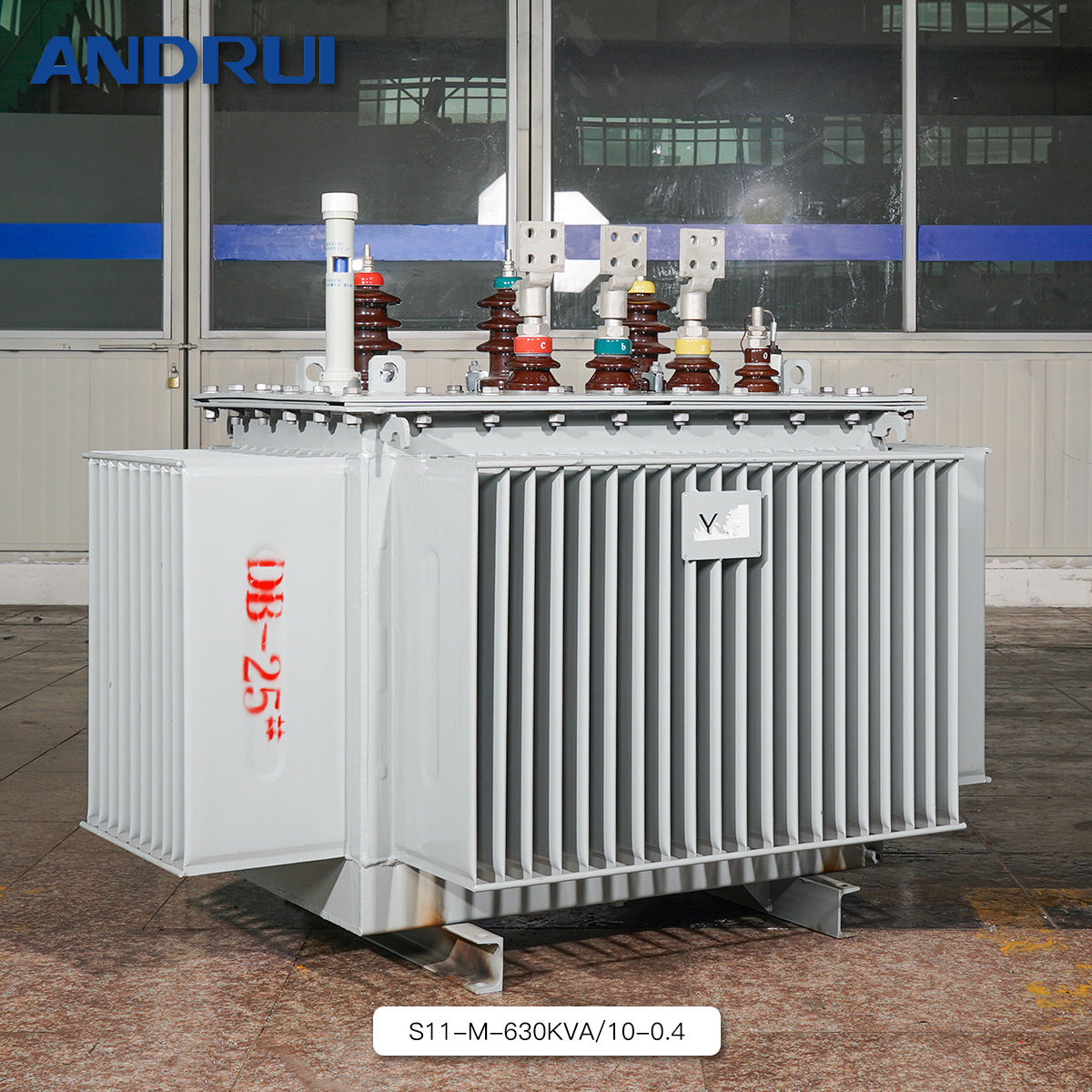

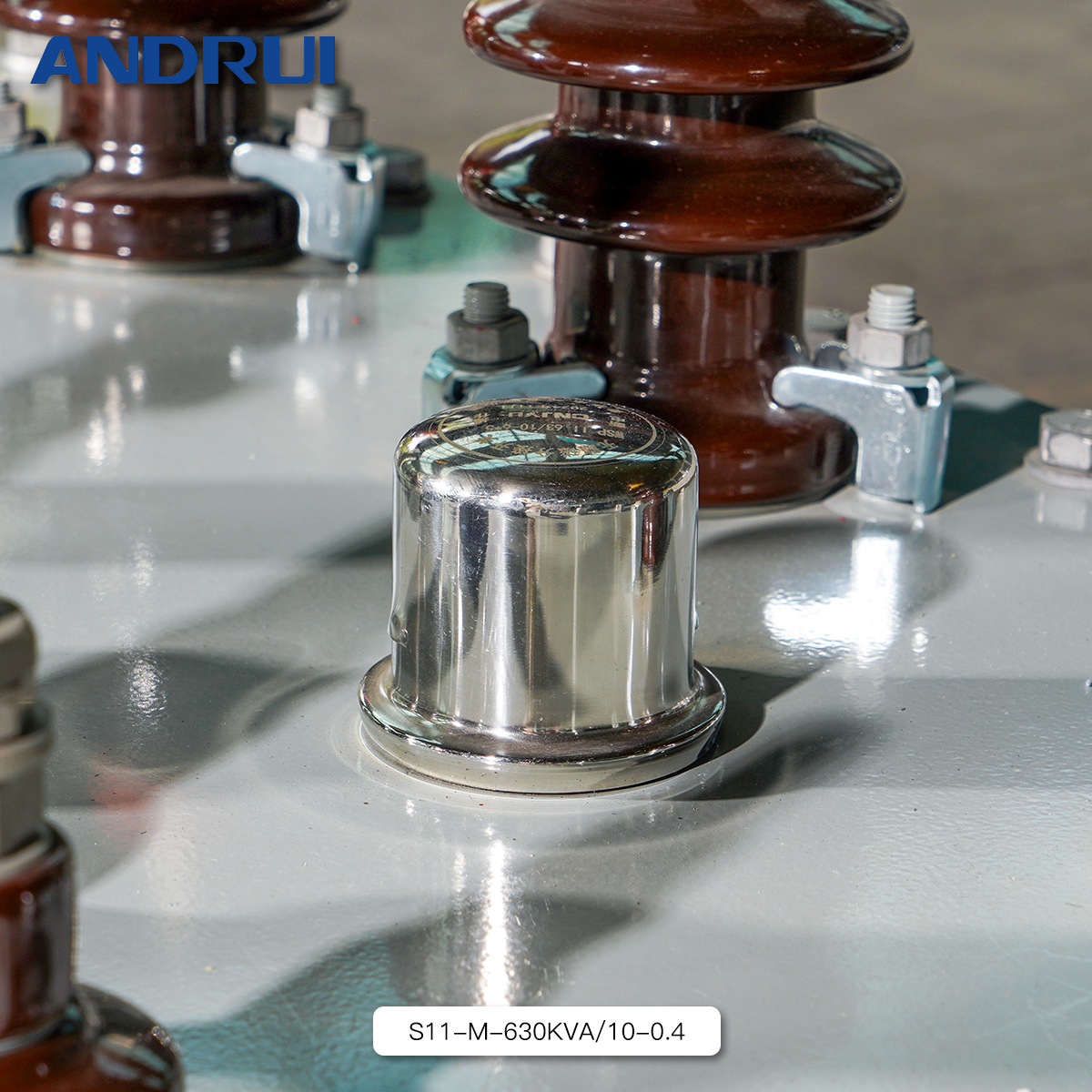

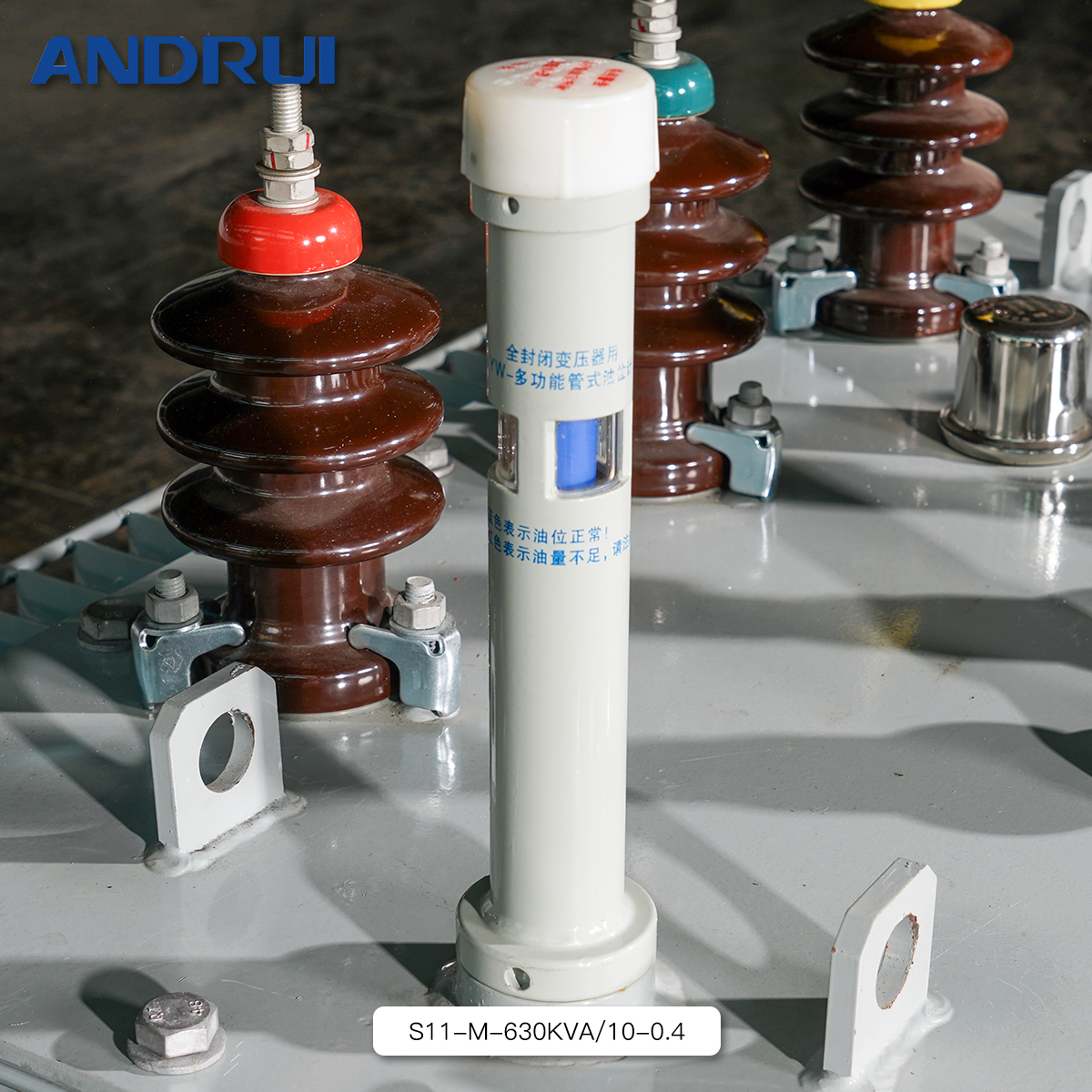

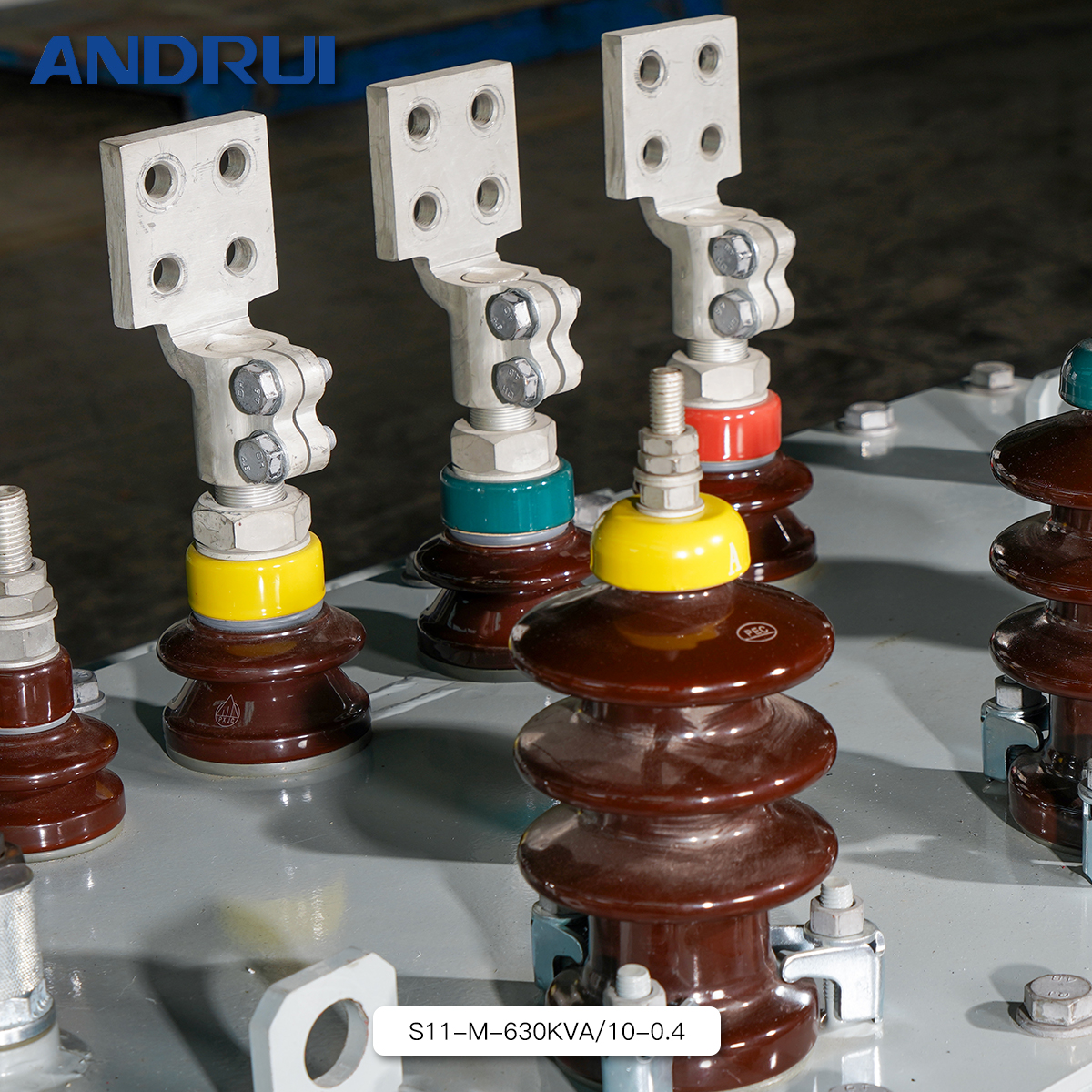

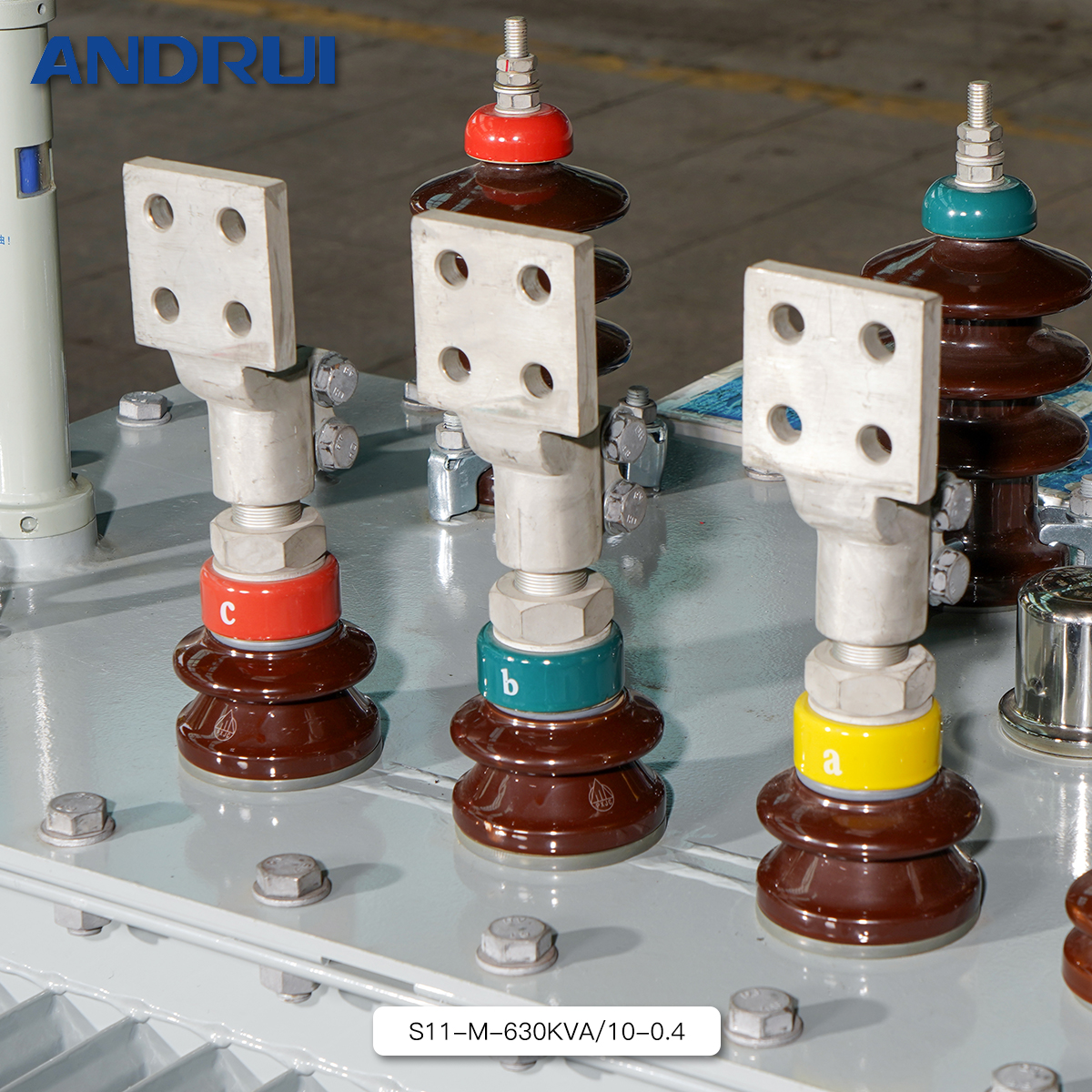

S11-M-630kVA 10/0.4kV Oil-Immersed Distribution Transformer

S11-M-630kVA 10/0.4kV oil-immersed distribution transformer is widely used in medium-load power distribution systems. It features low losses, strong short-circuit resistance, and high operational stability.


Availability:



Inquire

Product Description

Product overview

The three-phase oil-immersed distribution transformer produced by our company adopts a new insulation structure toimprove the short-circuit resistance. The core is made of high quality cold emulsion silicon steel sheet. The high voltage windingis made of high quality oxygen-free copper wire and adopts multi-layer cylinder structure. AIlfasteners are specially loose-proof.

The product has the high efficiency,the low loss characteristic,may save the massive electricity consumption and theoperation expense, the social benefit is remarkable, is the national promotion high and new technology product.

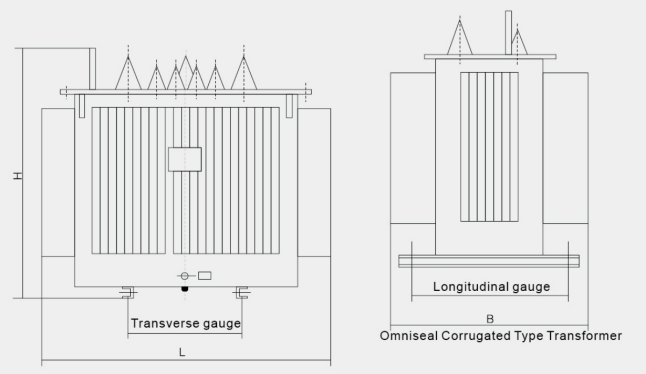

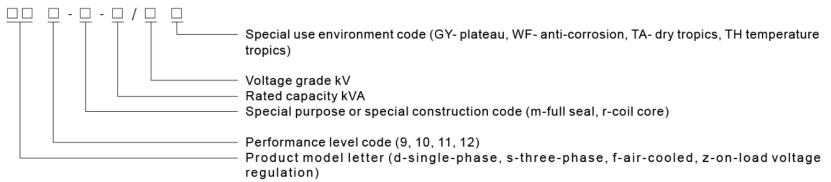

Types of meaning

Main performance of laminated core distribution transformer

Nominal capacity (kVA)	Voltage combination			Join groups	loss(W)		No- load current (%)	Short circuit imped- ance (%)	Body weight	The weight of the kg			Overall dimensions (mm)			The pitch of the installation (mm)L1/L2
Nominal capacity (kVA)	High pressure (kV)	Tapping range	The low pressure (kV)	Join groups	no- load	load (75℃)	No- load current (%)	Short circuit imped- ance (%)	Body weight	Body weight	Heavy oil	Total weight	long (L)	wide (M)	high (H)	The pitch of the installation (mm)L1/L2
30	6 6.3 10 10.5 11	±5% ±2 X2.5%	0.4	Yyn0 Dyn11	100	600	0.80	4 4.5	120	120	75	295	755	470	960	400/400
