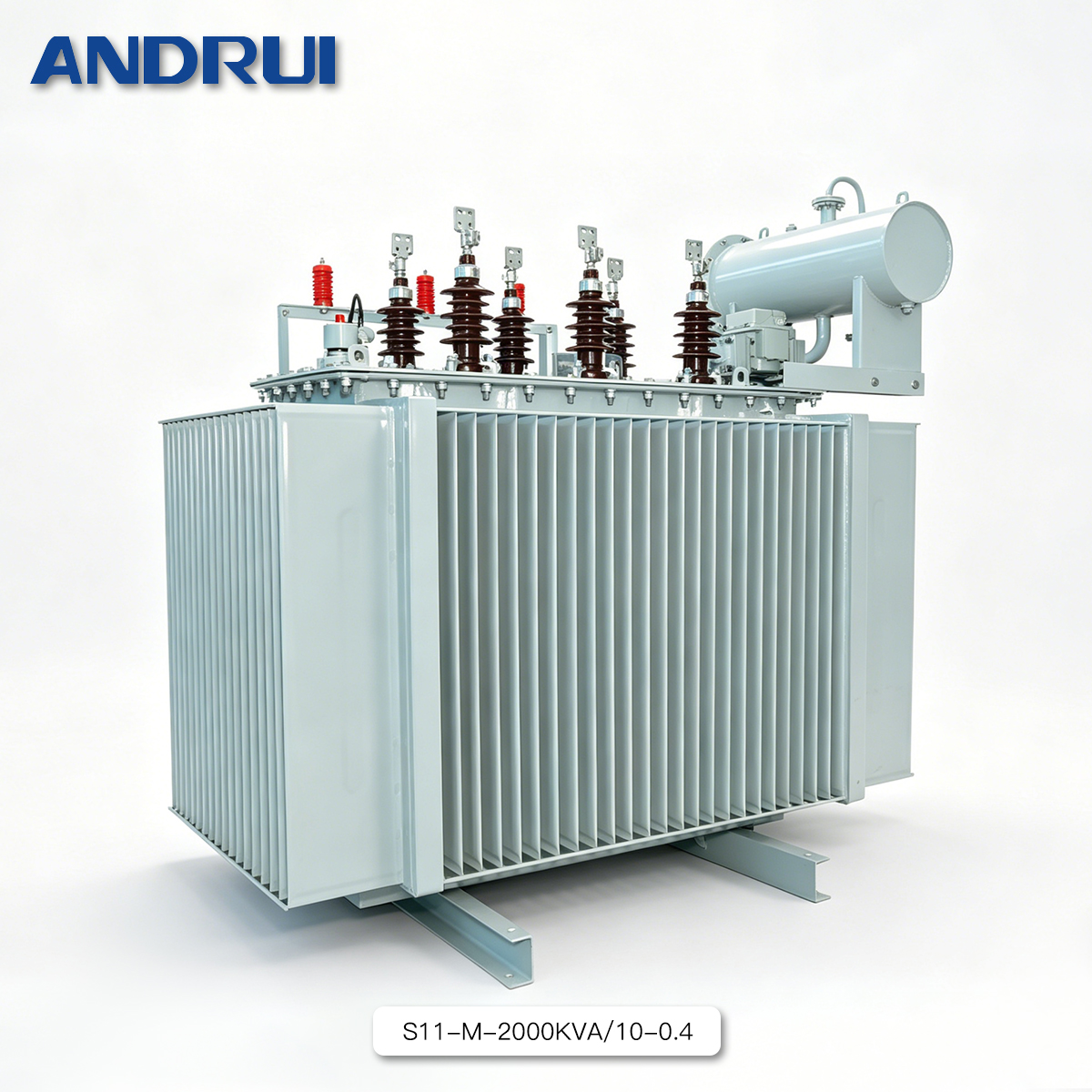

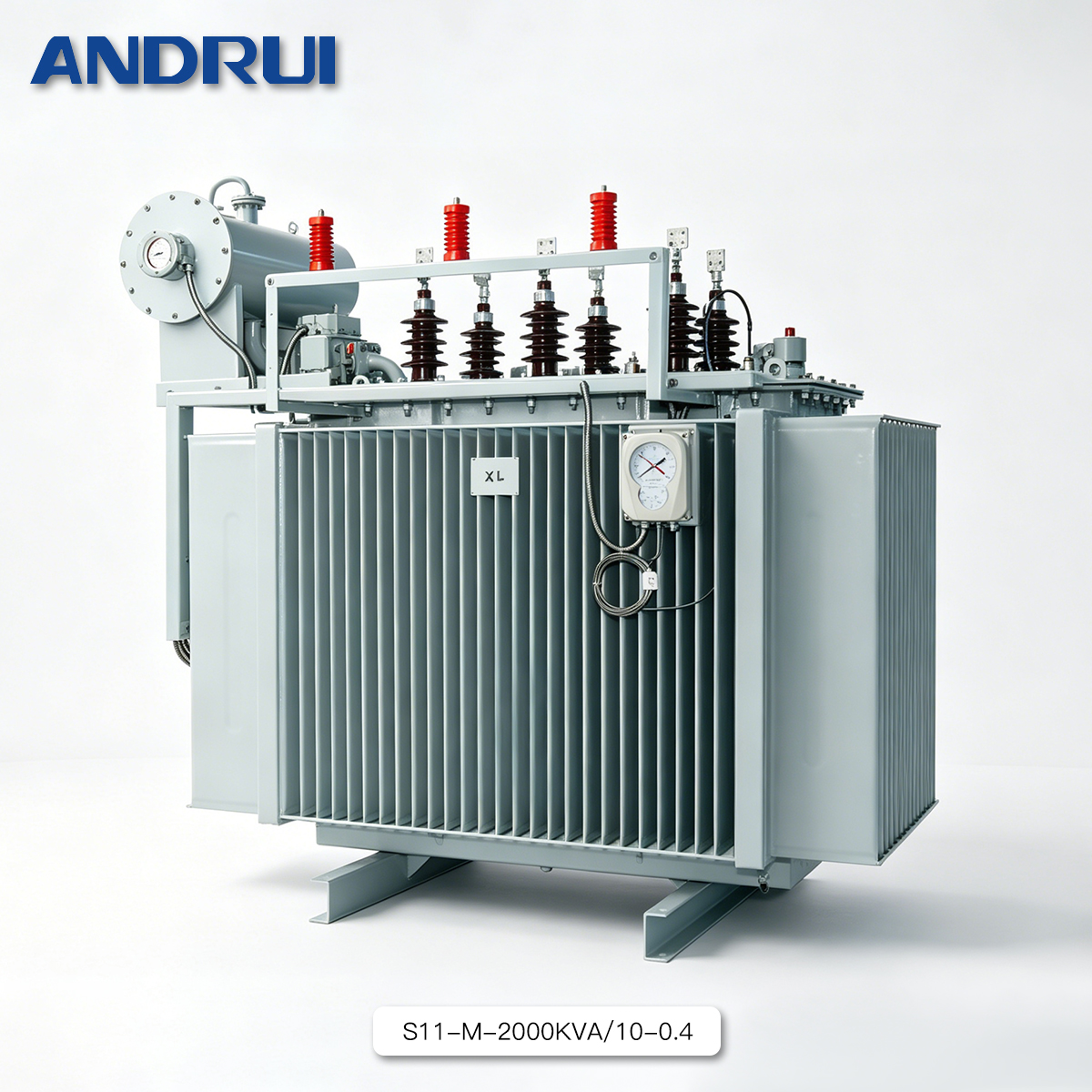

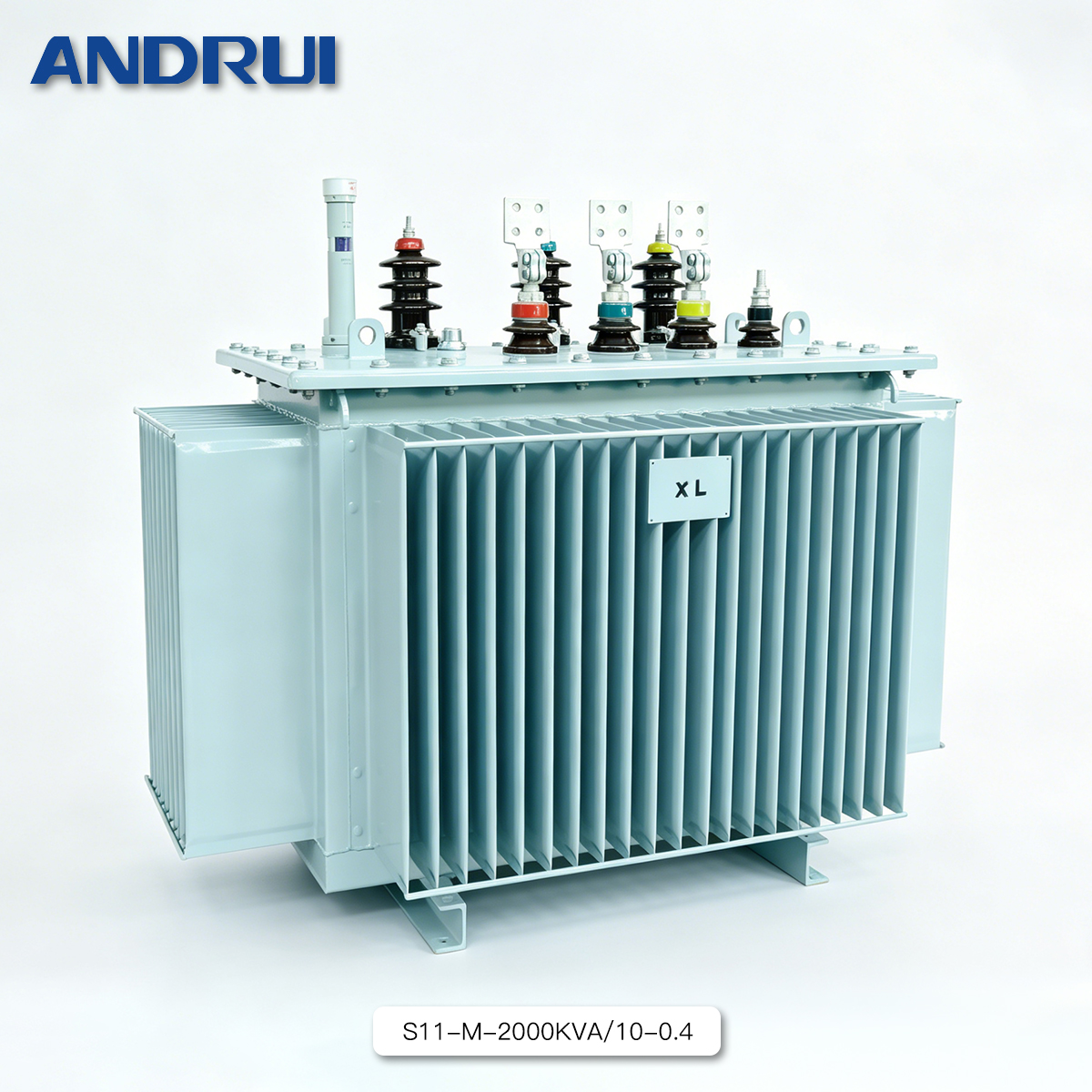

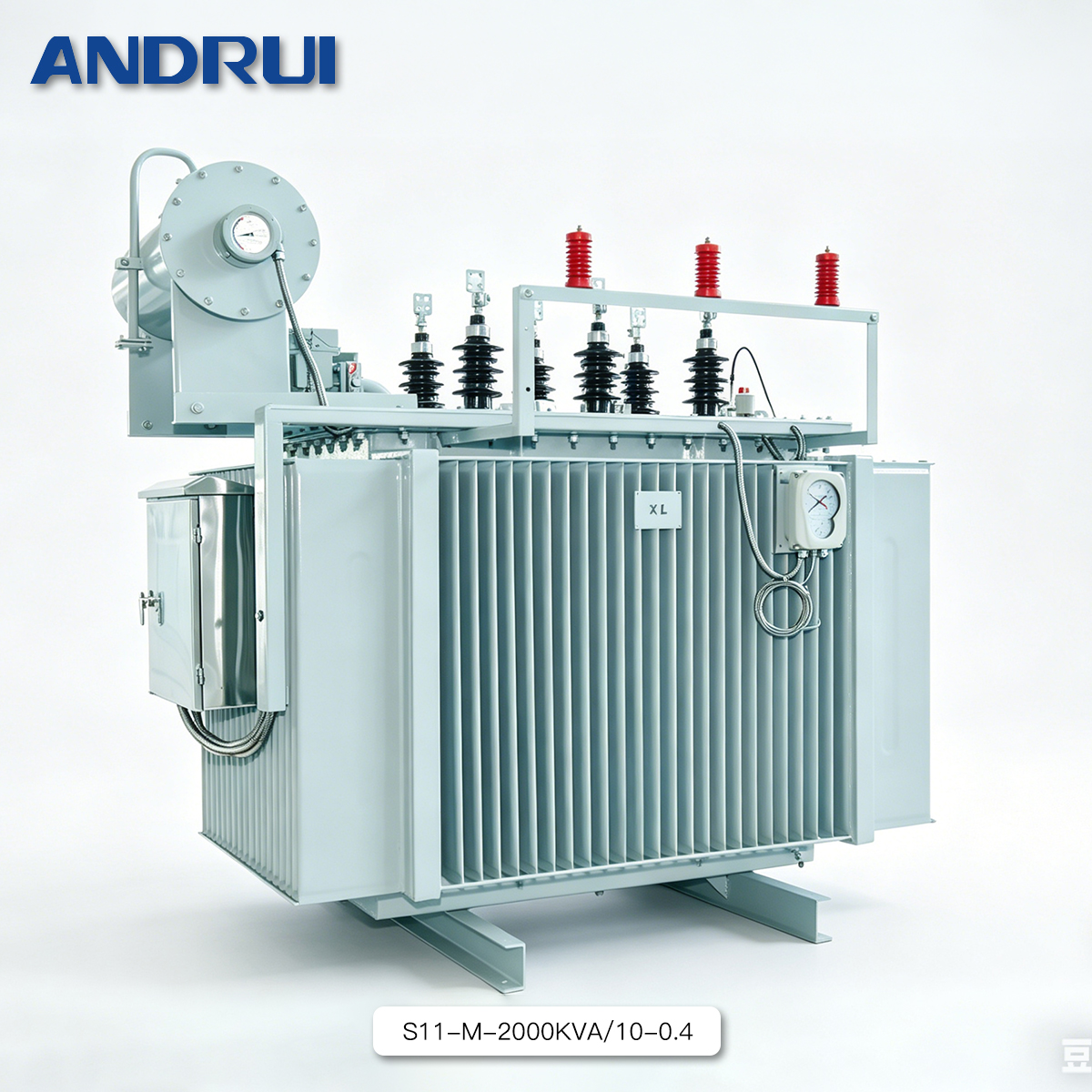

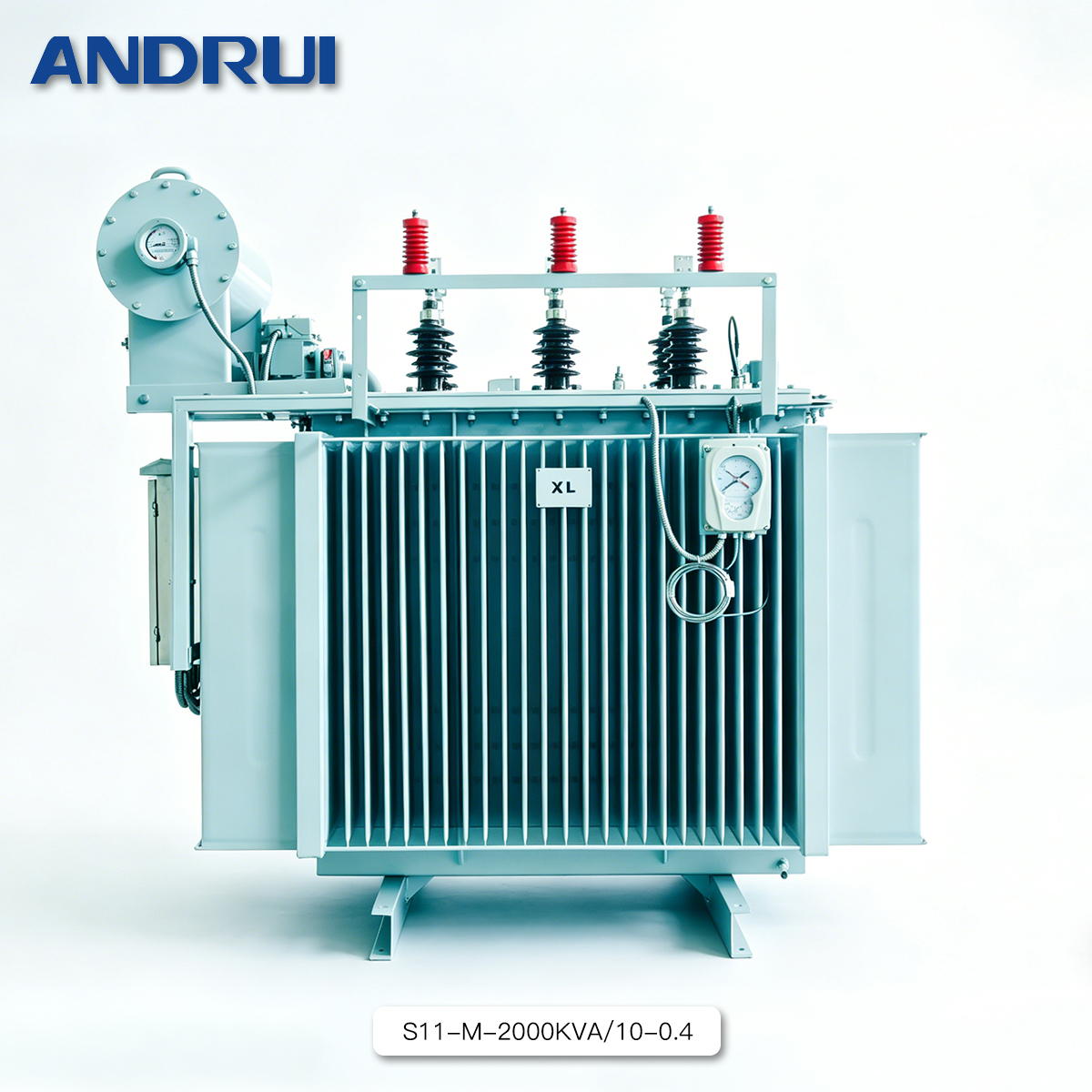

S11-M-2000kVA 10/0.4kV Oil-Immersed Distribution Transformer

S11-M-2000kVA 10/0.4kV oil-immersed distribution transformer is suitable for large industrial and utility power systems. It ensures high reliability, low loss operation, and strong load handling capability.

Availability:



Inquire

Product Description

Product overview

The three-phase oil-immersed distribution transformer produced by our company adopts a new insulation structure toimprove the short-circuit resistance. The core is made of high quality cold emulsion silicon steel sheet. The high voltage windingis made of high quality oxygen-free copper wire and adopts multi-layer cylinder structure. AIlfasteners are specially loose-proof.

The product has the high efficiency,the low loss characteristic,may save the massive electricity consumption and theoperation expense, the social benefit is remarkable, is the national promotion high and new technology product.

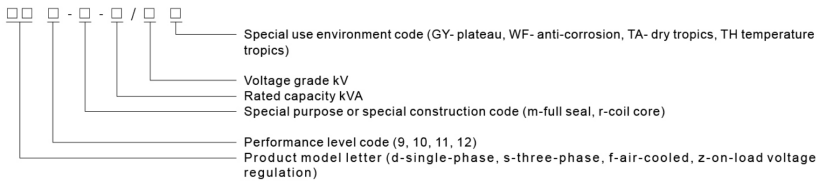

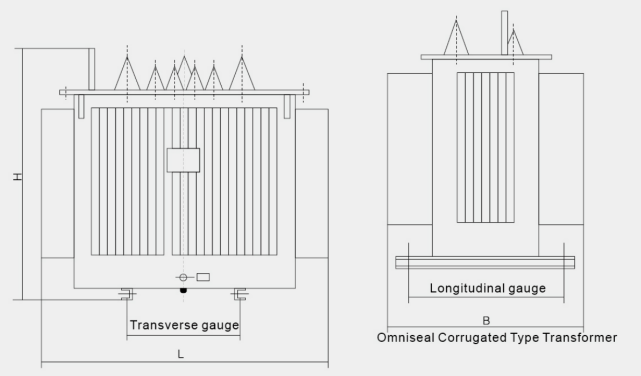

Types of meaning

Main performance of laminated core distribution transformer

Nominal capacity (kVA)	Voltage combination			Join groups	loss(W)		No- load current (%)	Short circuit imped- ance (%)	Body weight	The weight of the kg			Overall dimensions (mm)			The pitch of the installation (mm)L1/L2
Nominal capacity (kVA)	High pressure (kV)	Tapping range	The low pressure (kV)	Join groups	no- load	load (75℃)	No- load current (%)	Short circuit imped- ance (%)	Body weight	Body weight	Heavy oil	Total weight	long (L)	wide (M)	high (H)	The pitch of the installation (mm)L1/L2
30	6 6.3 10 10.5 11	±5% ±2 X2.5%	0.4	Yyn0 Dyn11	100	600	0.80	4 4.5	120	120	75	295	755	470	960	400/400
50					130	870	0.75		200	200	90	390	765	545	990	400/400
63					150	1040	0.70		235	235	100	450	815	555	1035	400/400
80					180	1250	0.70		250	250	105	485	830	605	1040	450/450
100					200	1500	0.65		300	300	115	555	850	620	1075	450/450
125					240	1800	0.65		370	370	135	660	870	635	1170	550/550
160					270	2200	0.60		465	465	150	790	900	640	1280	550/550
200					330	2600	0.60		540	540	190	940	960	725	1305	550/550
250					400	3050	0.50		660	660	205	1095	1160	690	1345	550/550
315					480	3650	0.45		750	750	250	1255	1240	760	1375	660/660
400					570	4300	0.40		780	780	265	1375	1430	940	1430	660/660
500					680	5100	0.40		850	850	300	1680	1435	950	1435	660/660
630					810	6200	0.40		940	940	410	1850	1520	1075	1475	550/660
800					980	7500	0.40		1175	1175	500	2260	1535	1080	1690	820/820
1000					1150	10300	0.30		1265	1265	510	2390	1540	1080	1715	820/820
1250					1360	12000	0.30		2090	2090	570	3370	1700	1185	1740	820/820
1600					1640	14500	0.30		2530	2530	635	3950	1715	1210	1780	820/820
2000					2050	17500	0.50		3095	3095	750	4715	1745	1285	1900	820/1070
2500					2500	21200	0.40		3130	3130	800	5005	1980	1525	1920	820/1070
