In today’s rapidly urbanizing world, the distance between residential communities and critical electrical infrastructure is shrinking. It is now common to find power substations integrated directly into the fabric of neighborhoods. This proximity often triggers a fundamental question for homeowners and city planners: Is it bad to live near a power substation? Concerns regarding long-term health, electromagnetic radiation, fire safety, and property depreciation are valid, but they are frequently influenced by a lack of technical understanding of how these facilities operate.
At AnRui, we believe that transparency through engineering data is the best way to address public concerns. Power substations are the silent nodes of the grid, engineered with multiple layers of safety to ensure they coexist harmoniously with residential areas. This guide explores the science behind electromagnetic fields (EMFs), acoustic engineering, and the rigorous safety protocols that modern substations follow to protect the public.
To evaluate the safety of a substation, one must first understand its role. A substation does not "generate" electricity; it is a conversion point. It takes high-voltage power from transmission lines (e.g., 110kV or 220kV) and uses massive transformers to step it down to distribution voltages (e.g., 11kV or 400V) for safe household use. This equipment is housed in a secure enclosure designed to contain any internal energy events and minimize external emissions.
The primary concern for residents is exposure to electromagnetic fields. EMFs are invisible areas of energy associated with the use of electrical power. They are divided into two components: electric fields and magnetic fields.
Electric fields are produced by voltage and are easily shielded by walls, trees, and metal fences. Therefore, the electric field from a substation is almost entirely contained within the facility's perimeter. Magnetic fields, however, are produced by current flow and can pass through most common building materials.
The Inverse Square Law: The intensity of a magnetic field follows the inverse square law of physics. As you move away from the source, the field strength drops exponentially. At a distance of 10 to 20 meters from the substation boundary, the magnetic field level typically falls well below the background levels produced by common household wiring and appliances.
ICNIRP General Public Guideline: 200 µT (Microtesla).
Edge of a Substation Boundary: 0.1 µT – 2 µT.
Household Microwave Oven: 4 µT – 8 µT.
Electric Shaver/Hairdryer: 1 µT – 50 µT.
The word "radiation" often causes fear, but in the context of electrical engineering, there is a vital distinction. Substations emit **Non-Ionizing Radiation**. This type of energy, which also includes radio waves and visible light, lacks sufficient power to remove electrons from atoms or damage DNA. Unlike **Ionizing Radiation** (such as X-rays or gamma rays), non-ionizing radiation at 50/60Hz frequency has no proven mechanism for causing cancer or neurological disorders according to the National Institute of Environmental Health Sciences (NIEHS).
Older substations were often criticized for a low-frequency "hum." This sound is caused by **Magnetostriction**, where the steel laminations in the transformer core microscopically expand and contract as the magnetic field reverses.
Modern AnRui substations utilize advanced acoustic engineering to mitigate this. By using step-lap core joints, high-grade silicon steel, and specialized vibration-damping mounts, the operational noise is reduced to levels that are indistinguishable from typical neighborhood ambient noise. Furthermore, acoustic barriers and landscaped setbacks provide additional sound attenuation.
While high-voltage equipment handles significant energy, the risk of a fire or explosion impacting a residence is extremely low due to redundant safety systems.
Modern switchgear from AnRui uses vacuum or SF6 gas interrupters. These systems extinguish electrical arcs within a sealed chamber in milliseconds, preventing the explosive energy releases seen in 1950s-era oil switches. If a fault occurs, the circuit is isolated long before any external damage can happen.
For residential-adjacent substations, AnRui recommends the use of Synthetic or Natural Esters (K-class fluids). These fluids have a fire point exceeding 300°C—meaning they are virtually non-flammable. Additionally, all our oil-immersed units are installed over "bunded" pits filled with river pebbles, which cool and contain any oil in the unlikely event of a leak, protecting local groundwater.
Aesthetic perception often dictates property value more than technical risk. A substation that looks like a high-voltage industrial cage can negatively impact neighborhood appeal.

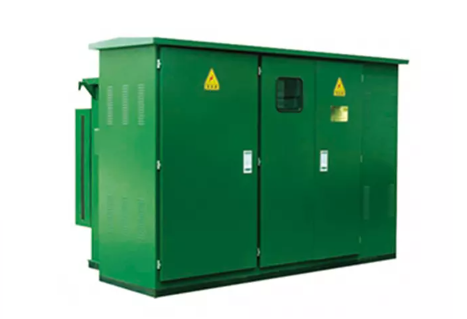

AnRui's Architectural Integration: We specialize in "Enclosed Box Substations" and "Prefabricated Substations" that can be designed to match local architecture. By using decorative cladding, subterranean installation, or integrated landscaping, a substation can become a nearly invisible part of the urban environment.
| Concern Category | Public Perception | Engineering Reality (AnRui Standards) |
|---|---|---|
| EMF Exposure | High/Dangerous | Minimal (Drops below background levels at 15m). |
| Noise | Loud Humming | Low-noise core design (<45dB at boundary). |
| Fire Risk | Explosive | Redundant protection + non-flammable ester oils. |
| Health Impact | Link to Illness | No consistent scientific evidence (WHO consensus). |
Every AnRui substation project follows a strict set of international standards to ensure public safety:
IEC 62271: High-voltage switchgear and controlgear safety.
IEEE C57.12.00: Standard general requirements for liquid-immersed transformers.
ICNIRP Guidelines: Limits of exposure to static and time-varying electric and magnetic fields.
ISO 14001: Environmental management to prevent soil and noise pollution.
The short answer is yes. Living near a substation does not pose a health or safety threat when the facility is engineered to modern standards. The electromagnetic fields are low-frequency and dissipate quickly; the noise is mitigated by modern materials; and the fire risk is controlled by advanced dielectric fluids and high-speed protection relays.
At AnRui, our mission is to build power infrastructure that serves people without encroaching on their quality of life. We achieve this through:
High-Permeability Shielding: Reducing magnetic flux leakage from the enclosure.
Low-Loss Core Materials: Minimizing heat and acoustic vibrations.
Smart Monitoring: 24/7 digital oversight to detect and isolate faults before they become public hazards.
Compact Footprints: Allowing for larger safety setbacks within smaller land parcels.
Ensure your community’s grid is safe, silent, and reliable. The expert engineering team at AnRui is ready to assist with custom substation designs, EMF modeling, and public safety consultations.
