How to Choose the Right Power Transformer for Your Project

When you're planning an electrical infrastructure project—whether it's for a high-output industrial factory, a utility-scale renewable energy site, or a modern commercial complex—selecting the right power transformer is one of the most critical decisions you will make. The transformer is not merely a static piece of hardware; it is the electromagnetic heart of the system, responsible for the safe, efficient, and stable conversion of voltage. A well-selected unit ensures system resilience, while a poorly specified one can lead to chronic energy losses, insulation failure, and catastrophic downtime.

At AnRui, we understand that every project presents a unique set of variables, from harmonic distortion and peak load profiles to aggressive environmental conditions. With thousands of configurations available, ranging from dry-type cast resin units to large-scale oil-immersed power transformers, the selection process must be grounded in rigorous engineering principles. This guide breaks down the selection criteria into a technical framework designed to help you navigate the complexities of power distribution and asset longevity.

Defining Project Type and Voltage Requirements

The first stage of selection involves defining the electrical parameters and the transformer's role in the network. Is the unit intended for "Step-Up" generation or "Step-Down" distribution? These roles dictate the internal geometry of the windings and the required insulation levels (BIL).

Input/Output Voltages and kVA Sizing

You must accurately define the primary and secondary voltage levels (e.g., 33kV to 400V). Sizing the transformer's rated power capacity—expressed in kilovolt-amperes (kVA) or megavolt-amperes (MVA)—requires an analysis of the concurrent load.

• The 80% Rule: For optimal efficiency and thermal stability, transformers are typically sized so that the average continuous load is roughly 80% of the rated capacity.

• Future-Proofing: AnRui recommends factoring in a 20-30% growth margin for industrial sites to prevent the need for costly infrastructure upgrades within 5-10 years.

Choosing the Dielectric Medium: Dry-Type vs. Oil-Immersed

This is the most significant fork in the decision path, usually dictated by the installation environment and local fire safety codes.

Dry-Type Transformers (Cast Resin/VPI)

Dry-type transformers use air for cooling and epoxy resin or varnish for insulation.

• Best For: Indoor locations, hospitals, high-rise basements, and tunnels.

• Pros: Zero fire risk (self-extinguishing), non-polluting (no oil leaks), and virtually maintenance-free.

• Cons: Generally higher initial cost and larger physical footprint per kVA compared to oil units due to air clearance requirements.

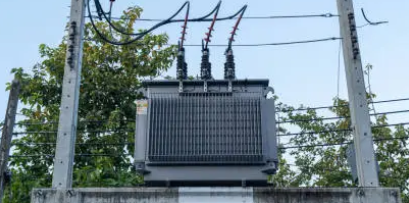

Oil-Immersed Transformers (Mineral/Ester Oil)

In these units, the core and windings are submerged in a tank of insulating oil.

• Best For: Outdoor utility substations, heavy industrial plants, and renewable energy parks.

• Pros: Superior cooling efficiency (ONAN/ONAF), smaller physical footprint, and higher overload capacity thanks to the fluid's thermal mass.

• Cons: Requires regular oil sampling, fire-suppression systems (in certain zones), and oil containment pits to prevent environmental contamination.

Analyzing Efficiency, Standards, and Energy Losses

Efficiency is revenue. Modern engineering standards (IEC 60076 or ANSI/IEEE C57) define the maximum allowable losses for transformers. AnRui focuses on minimizing the two types of electromagnetic losses.

No-Load Losses (Iron Losses)

These occur in the magnetic core 24/7 as long as the transformer is energized. By utilizing high-grade Cold-Rolled Grain-Oriented (CRGO) silicon steel or Amorphous Alloy cores, AnRui can reduce no-load losses by up to 70%. This is critical for solar farms where the transformer is idle at night but still consumes grid power.

Load Losses (Copper Losses)

These occur in the windings and increase with the square of the current (\(I^2R\)). High-purity, oxygen-free copper and optimized winding techniques are used to minimize this resistive heating.

Loss Capitalization: We help our clients calculate the A and B Factors (the financial value of 1kW of no-load and load loss over 20 years). This allows for a scientific comparison of bids based on total lifecycle cost rather than just the lowest purchase price.

Environmental Factors and Site Specifics

A transformer's performance is heavily influenced by its surroundings. Failure to account for these can lead to rapid insulation aging.

Corrosion and Seismic Resilience

If the site is within 5km of the ocean, AnRui provides C5-M grade marine anti-corrosion coatings and stainless steel hardware to prevent the tank and radiators from rusting through. For earthquake-prone regions, we engineer reinforced core-clamping structures and seismic-rated bases to ensure the transformer remains operational after a seismic event.

Cooling Methodology Selection

The cooling class defines how the transformer manages its thermal rise.

• ONAN (Oil Natural Air Natural): Silent and reliable; uses the natural thermosiphon effect.

• ONAF (Oil Natural Air Forced): Uses fans to increase the transformer's capacity by up to 25% during peak loads.

• AN / AF (Air Natural / Air Forced): The equivalent classes for dry-type units.

Selecting the right cooling method allows you to optimize the transformer's footprint and ensure it survives peak summer temperature surges.

Long-Term Reliability and Future Expansion

When choosing an AnRui transformer, you are making a 30-year commitment to your facility's energy security. Consider the following final checks:

• Smart Monitoring: Should the unit be equipped with IoT sensors for real-time temperature and oil health monitoring?

• Harmonic Loads: Does your facility use VFDs or heavy IT equipment? If so, a K-Factor rated transformer is essential to handle the extra heating caused by non-linear loads.

• Grid Compatibility: Ensure the transformer's impedance value (\(Z\%\)) matches the fault level requirements of your local utility provider to ensure proper protection coordination.

Conclusion

The selection of a power transformer is a sophisticated engineering task that demands a holistic view of the project's electrical, environmental, and financial goals. From matching voltage and kVA requirements to selecting the most appropriate dielectric medium and prioritizing high-efficiency materials like CRGO or amorphous steel, every choice impacts the reliability of your power network.

At AnRui, we provide the technical expertise and high-performance equipment necessary to ensure your project is a success. A well-selected transformer is not just a purchase—it is a long-term investment in safety, stability, and operational efficiency. By partnering with our engineering team, you can be certain that your infrastructure is powered by a unit that is specifically optimized for your unique challenges.
