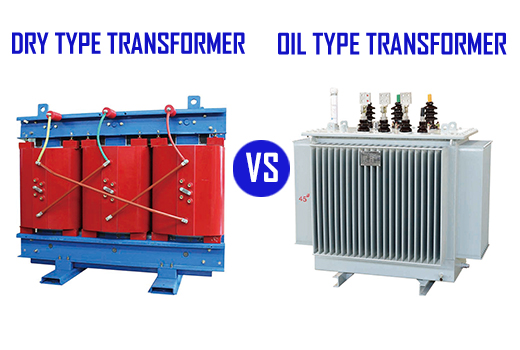

In the expansive discipline of electrical power distribution, selecting the appropriate transformer technology is one of the most consequential decisions an engineer will make. The choice between a Dry-type transformer and an Oil-immersed unit dictates the project's fire safety profile, environmental footprint, and long-term operational expenditure (OPEX). While both technologies facilitate the same fundamental electromagnetic induction—transferring energy between circuits via magnetic flux—the physical media used for insulation and cooling create vastly different performance envelopes.
At AnRui, we manufacture world-class solutions for both technologies. We understand that a high-rise commercial center in a densely populated city demands a different thermal and safety strategy than a utility-scale solar farm or a remote mining operation. This guide provides a rigorous engineering analysis of the differences, advantages, and specific application criteria for Dry-type and Oil-immersed transformers.
A Dry-type transformer is characterized by its reliance on atmospheric air or solid dielectric materials for both cooling and insulation. Unlike traditional designs, the core and windings are not submerged in liquid. Instead, they are typically encapsulated in epoxy resin or protected by a ventilated enclosure.
Because air has a lower dielectric strength and thermal conductivity than oil, Dry-type transformers must utilize high-performance solid insulation. AnRui primarily utilizes Class F (155°C) or Class H (180°C) insulation systems. These materials can withstand significantly higher operating temperatures than cellulose paper in oil, providing a "thermal buffer" against temporary overloads.
We utilize two primary manufacturing methods:
Cast Resin Transformers (CRT): The high-voltage windings are vacuum-cast in epoxy resin mixed with quartz powder. This creates a monolithic, moisture-proof, and flame-retardant structure, ideal for high-humidity or polluted environments.
Vacuum Pressure Impregnation (VPI): Windings are coated with high-temperature varnish and cured under pressure. VPI units offer excellent mechanical strength and are generally more cost-effective for clean, indoor applications.
An Oil-immersed transformer (or oil-filled unit) utilizes specialized mineral or ester oil as a multi-functional engineering fluid. The entire electromagnetic assembly is housed in a steel tank and completely submerged in this liquid.
Insulating oil is a superior heat-transfer medium. As the windings heat up, the oil in contact with the copper becomes less dense and rises (natural convection). This hot oil travels to external radiator fins where it sheds heat to the atmosphere. This "Thermosiphon effect" allows Oil-immersed units to manage much higher power densities than Dry-type units. For large utility units, AnRui adds automated fans (ONAF) to further increase cooling efficiency.
One of the unique advantages of liquid insulation is its "self-healing" capability. If a high-voltage surge (such as a lightning strike) causes a minor spark within the oil, the fluid immediately flows back into the gap, restoring the dielectric barrier. In solid resin, a similar spark could leave a permanent "carbon track" that leads to eventual failure. This makes AnRui oil units the standard for outdoor utility transmission lines.
| Feature | AnRui Dry-Type Transformer | AnRui Oil-Immersed Transformer |
|---|---|---|
| Cooling Medium | Ambient Air (Natural or Forced) | Insulating Oil (Mineral or Ester) |
| Dielectric Barrier | Epoxy Resin or Dry Air | Oil-permeated Cellulose Paper |
| Fire Resistance | Excellent (Self-extinguishing) | Requires Protection (Flammable) |
| Maintenance | Minimal (Dust cleaning) | Periodic (Oil sampling & testing) |
| Indoor Safety | Ideal (No oil-fire risk) | Restricted (Requires containment pits) |
| Fault Locating | Easy visual inspection | Complex (Requires oil analysis) |
| Initial Cost | Higher (Specialized materials) | Lower (Cost-effective per kVA) |
In high-temperature environments (desert or heavy industrial), the choice becomes a matter of thermal physics.
Why Oil Wins in Raw Cooling: Liquid-filled units are generally more resilient to extreme heat because the oil acts as a massive thermal reservoir. It can absorb significant heat surges without the winding temperature rising instantly. This provides a safety margin in hot climates where ambient temperatures exceed 40°C.
Why Dry-Type Wins in Winding Stress: Conversely, Dry-type units are rated for higher absolute temperatures (Class H). While an oil unit is limited by the flashpoint of the fluid, a Dry-type unit can safely operate at 150°C continuous winding temperature. At AnRui, we recommend Dry-type units for high-temperature areas only if there is adequate forced-air ventilation to prevent local "heat traps."
The frequency and complexity of maintenance are key drivers for the Total Cost of Ownership (TCO).
Oil-immersed transformers require a proactive chemical monitoring strategy.
DGA (Dissolved Gas Analysis): Conducted every 1-2 years to detect trace gases like Ethylene or Acetylene, which indicate incipient overheating or arcing.
Oil Purification: If moisture levels exceed 20ppm or dielectric strength drops below 30kV, the oil must be filtered or replaced.
Seal Integrity: Regular inspection of gaskets to prevent leaks that could lead to environmental contamination.
Dry-type units are often marketed as "maintenance-free," but they still require engineering attention.
Dust Management: In industrial settings, dust can accumulate in the cooling ducts, acting as a thermal blanket and leading to "hotspots." Annual vacuum cleaning is essential.
Torque Verification: Checking the tightness of electrical connections which may loosen due to thermal cycling.
Thermal Imaging: Using IR cameras to ensure the airflow is even across all phases.
When should you choose AnRui Dry-Type?
In skyscrapers, hotels, and hospitals where fire safety is the legal mandate.
In underground facilities and tunnels where oil leaks could damage groundwater or public health.
In data centers where maintenance downtime must be zero.
When should you choose AnRui Oil-Immersed?
For outdoor utility transmission and high-voltage distribution networks.
For very high-capacity loads (e.g., above 35kV or 20MVA).
In rural electrification projects where cost-efficiency is the primary constraint.
The choice between Dry-type and Oil-immersed transformers is not a binary decision of "better" or "worse." It is a strategic alignment of transformer physics with project constraints. While Oil-immersed units offer unparalleled thermal efficiency and dielectric healing for bulk power, Dry-type units provide the absolute safety and environmental peace of mind required for the modern urban landscape.
At AnRui, we are committed to engineering excellence in both categories. By utilizing high-grade CRGO steel, high-purity copper, and advanced diagnostic monitoring, we ensure that whichever technology you choose, your infrastructure is powered by a unit designed for 40 years of silent, reliable service. Trust AnRui to provide the technical depth and manufacturing precision your power distribution network demands.
