Can a Transformer Work Without Oil? Understanding Oil-Free Transformer Technology

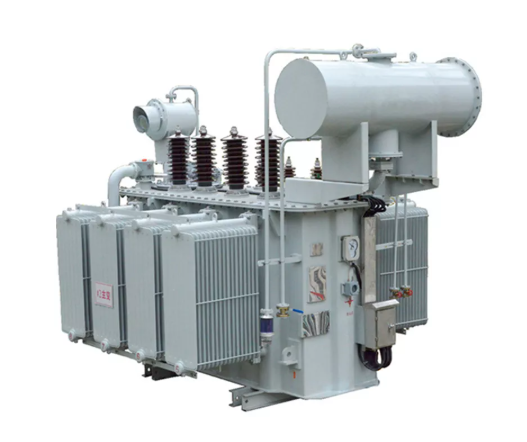

In traditional power distribution systems, oil-immersed transformers have been the undisputed industry standard for over a century. However, as global urbanization creates higher population densities and environmental regulations become increasingly stringent, the engineering community faces a critical question: Can a transformer operate effectively without oil? The answer is a definitive yes, and this solution—the dry-type transformer—is currently transforming the way we design buildings, tunnels, and renewable energy grids.

At AnRui, we specialize in the engineering of both high-performance oil-immersed and oil-free dry-type transformers. While mineral oil provides an exceptional combination of dielectric strength and thermal dissipation, the rise of solid-insulation technology has allowed us to bridge the gap. This comprehensive guide explores the physics of oil-free transformers, the material science of resin encapsulation, and the strategic scenarios where eliminating oil is the superior engineering choice.

What is an Oil-Free (Dry-Type) Transformer?

An oil-free transformer, professionally known as a dry-type transformer, is an electromagnetic device that utilizes atmospheric air and solid dielectric materials for both insulation and cooling. Unlike traditional models, the magnetic core and copper/aluminum windings are not submerged in a tank of mineral oil. Instead, the windings are protected by high-temperature solid insulation or encapsulated in a monolithic block of epoxy resin.

The Dielectric Challenge: Air vs. Oil

From an engineering perspective, replacing oil with air is challenging. Mineral oil has a dielectric strength approximately 10 to 15 times higher than that of air. To compensate for air's lower dielectric capacity, AnRui dry-type transformers utilize specialized geometry and higher-grade solid insulation to maintain the same Basic Insulation Level (BIL). This often results in a physically larger unit compared to an oil transformer of the same kVA, but with the added benefit of being virtually maintenance-free.

The Mechanics of Oil-Free Cooling and Insulation

While the electromagnetic induction principles (Faraday's Law) remain identical to oil-filled units, the thermal management of a dry-type transformer is fundamentally different. Cooling is achieved through natural air convection (AN) or forced air (AF) systems using high-static pressure fans.

Vacuum Pressure Impregnation (VPI)

In VPI technology, the windings are wound with high-temperature NOMEX or polyester film and then placed in a vacuum chamber. A high-viscosity, non-halogenated varnish is forced into the windings under pressure. This eliminates air pockets (voids) that could cause partial discharge, ensuring the unit can handle high-voltage stresses without internal arcing.

Cast Resin Encapsulation (CRT)

For more demanding environments, AnRui utilizes Cast Resin technology. The windings are placed in a mold and encapsulated in a thick layer of epoxy resin mixed with quartz powder. This creates a monolithic, moisture-proof, and flame-retardant structure.

• Mechanical Strength: The solid resin block provides incredible resistance to the Lorentz forces generated during a short circuit.

• Environmental Shielding: The resin protects the copper from corrosive industrial gases, salt-spray in coastal areas, and high-humidity tropical conditions.

Strategic Advantages of Oil-Free Power

Choosing an oil-free design from AnRui provides several mission-critical advantages that simplify project engineering and reduce long-term operational expenditure (OPEX).

Zero Fire and Explosion Risk

Mineral oil is a flammable hydrocarbon. In an indoor setting, an oil-filled transformer failure can lead to a catastrophic fire. AnRui dry-type transformers comply with F1 Fire Behavior standards—they are self-extinguishing and emit no toxic smoke. This allows them to be installed in hospitals, subways, and residential basements where oil-filled units are legally prohibited by local fire codes.

Environmental Sustainability

As corporate ESG (Environmental, Social, and Governance) goals become stricter, the "Green" nature of dry-type transformers is a significant asset. There is no risk of groundwater contamination or soil pollution. At the end of the transformer's life, the copper and core steel are 100% recyclable, and there is no hazardous oil waste to dispose of.

Proximity to Load (Load-Center Placement)

Because they are safe for indoor use, AnRui dry-type units can be placed in "electrical closets" on the upper floors of skyscrapers or right next to industrial machinery. This drastically reduces the length of expensive low-voltage copper cabling, significantly lowering the total project CAPEX and reducing electrical line losses.

Where Are Oil-Free Transformers Indispensable?

While oil-filled units still dominate the ultra-high voltage (UHV) transmission sector, dry-type technology is the preferred choice in the following high-value sectors:

• Urban Skyscrapers and Hotels: Where fire safety is the primary constraint.

• Metro and Underground Rail Systems: Where smoke toxicity and fire containment are critical for passenger safety.

• Data Centers: Where high power density and absolute reliability are required without the risk of liquid leaks damaging server hardware.

• Renewable Energy (Offshore Wind): Modern nacelles use dry-type transformers because oil leaks into the ocean are an ecological disaster.

• Mining and Tunnels: Where ventilation is limited and the risk of explosion must be zero.

Comparative Analysis: Dry-Type vs. Oil-Immersed

Engineers must evaluate the trade-offs between the two technologies based on the specific project environment.

Total Cost of Ownership (TCO) Considerations

While the initial capital expenditure (CAPEX) of an AnRui dry-type transformer may be 20-30% higher than a standard oil unit, the Total Cost of Ownership is often lower.

By eliminating the need for:

• Fire-resistant vault construction and firewalls.

• Oil-sump and containment pits.

• Annual oil Dissolved Gas Analysis (DGA).

• Gasket replacements and leak repairs.

The overall project costs are significantly reduced, and the "mean time to repair" is virtually eliminated.

Conclusion: Designing a Safe and Efficient Future

Can a transformer work without oil? Not only can it, but in many modern applications, it should. Dry-type technology represents the pinnacle of safety and environmental responsibility in the power distribution industry. By leveraging advanced material science and vacuum casting techniques, AnRui has created oil-free transformers that deliver the same electrical reliability as traditional units without any of the flammable risks.

Whether you are designing a high-efficiency data center, an offshore wind farm, or a metropolitan subway network, AnRui provides the engineering expertise to help you choose the right dielectric medium for your specific needs. The transition to an oil-free future is not just about technology; it's about building a safer, cleaner, and more resilient grid for everyone.
